Specification:

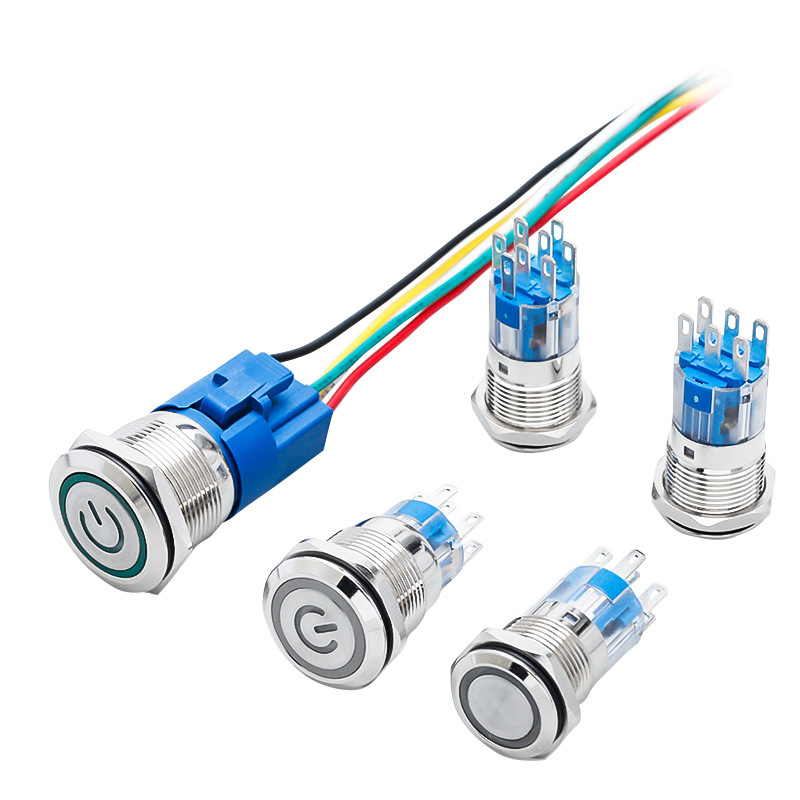

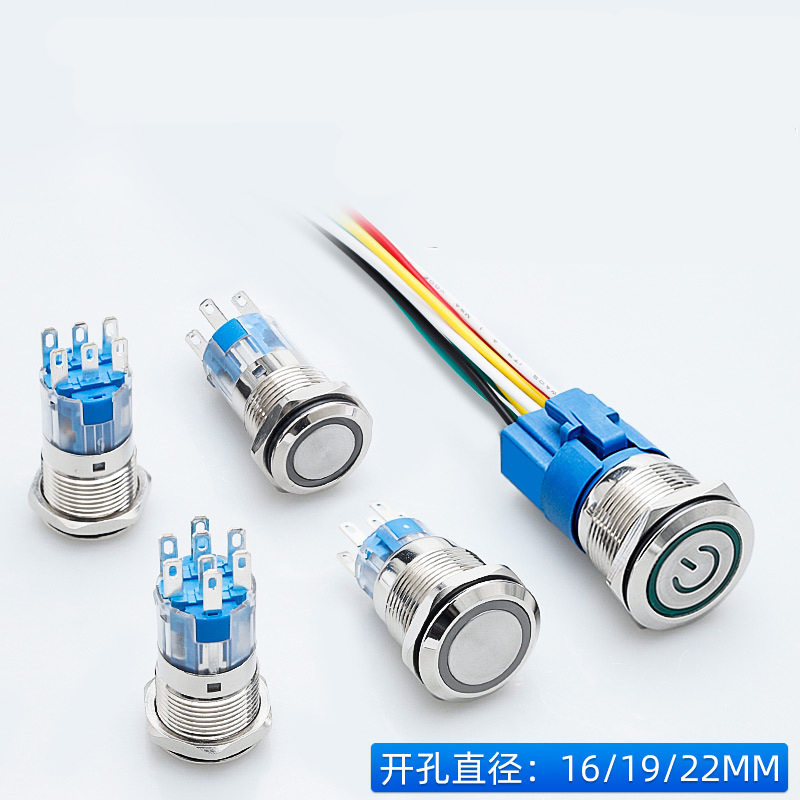

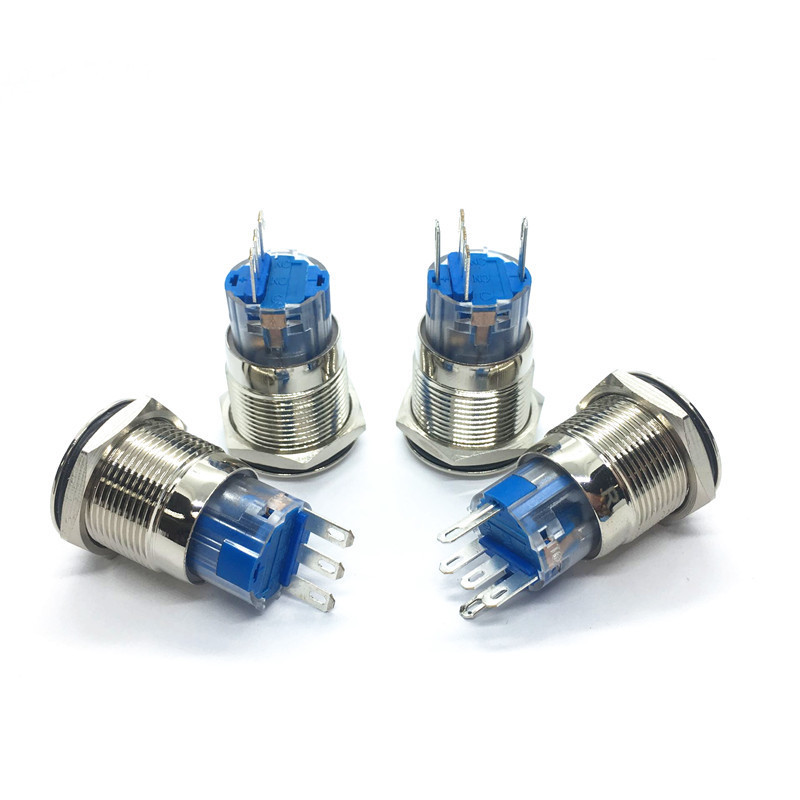

Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC

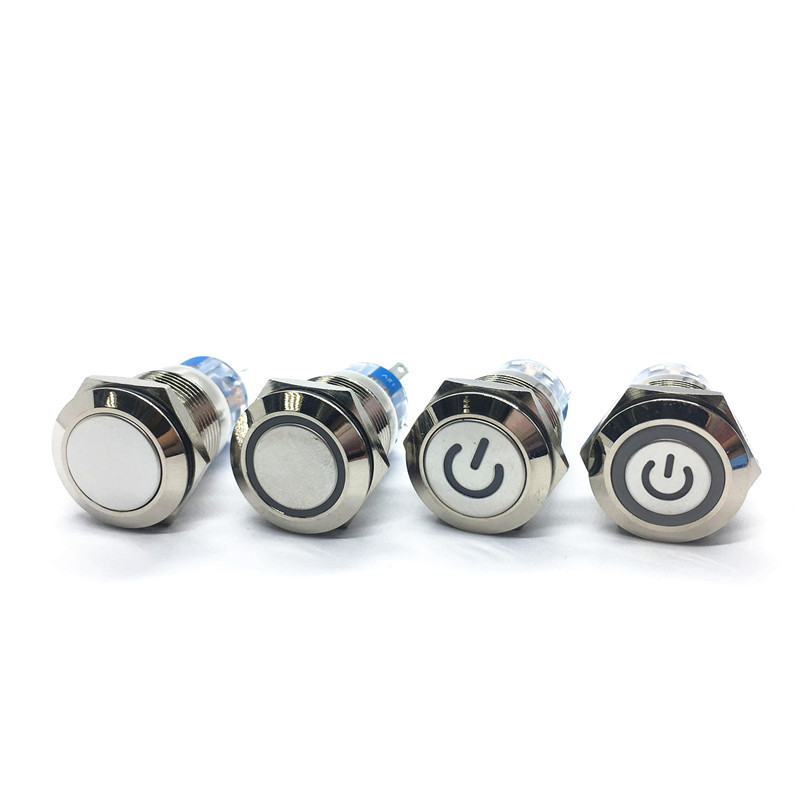

Head shape:
Flat head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-B11PEZ |
| Mounting Hole |
19mm |
| Operation Type |
latching |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

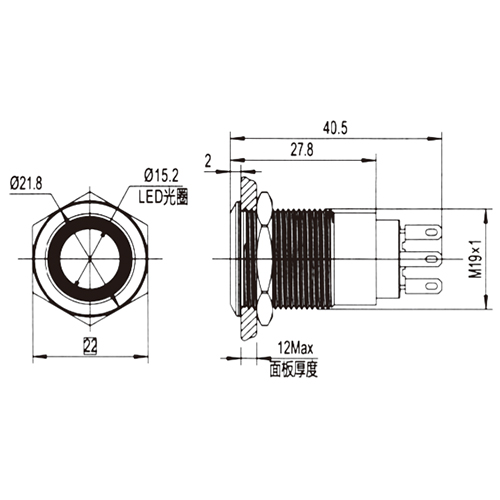

Drawing
Product introduction : The tamper-resistant switch is a rugged and secure control device designed to provide reliable performance in demanding environments. With its rugged construction and tamper-proof design, this switch provides a reliable solution to ensure operational integrity and security in a variety of industrial and commercial environments. With its vandal-resistant properties and durable drive mechanism, it is an important component in protecting critical controls and increasing user confidence in the control system.
Application : Public Access Systems: Anti-vandal switches are commonly used in public access systems such as ticket machines, interactive kiosks, and access control panels. Its anti-vandal features and security drivers help prevent unauthorized tampering or damage, ensuring reliable operation of public access points and increasing user confidence in self-service applications.
