19mm latching Anti Vandal Swtich

Specification:  Product name: Push Button Switch/ Anti-vandal switch Material: Brass nickel plated / Stainless steel LED color: Blue White Yellow Red Green Orange Operation Type: Latching  type push it-on, push again  it-off Switch Rating: 5A/250VAC LED voltage: 12V or 3V, 5V, 24V, 110V, 220V Contact Configuration: 1NO1NC Head shape:  High  head  Hole size: 19mm
Product Name Push button switch
Model YL19C-B11GEZ
Mounting Hole 19mm
Operation Type latching
Switch Combination 1NO1NC
Head Type High  head
Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C

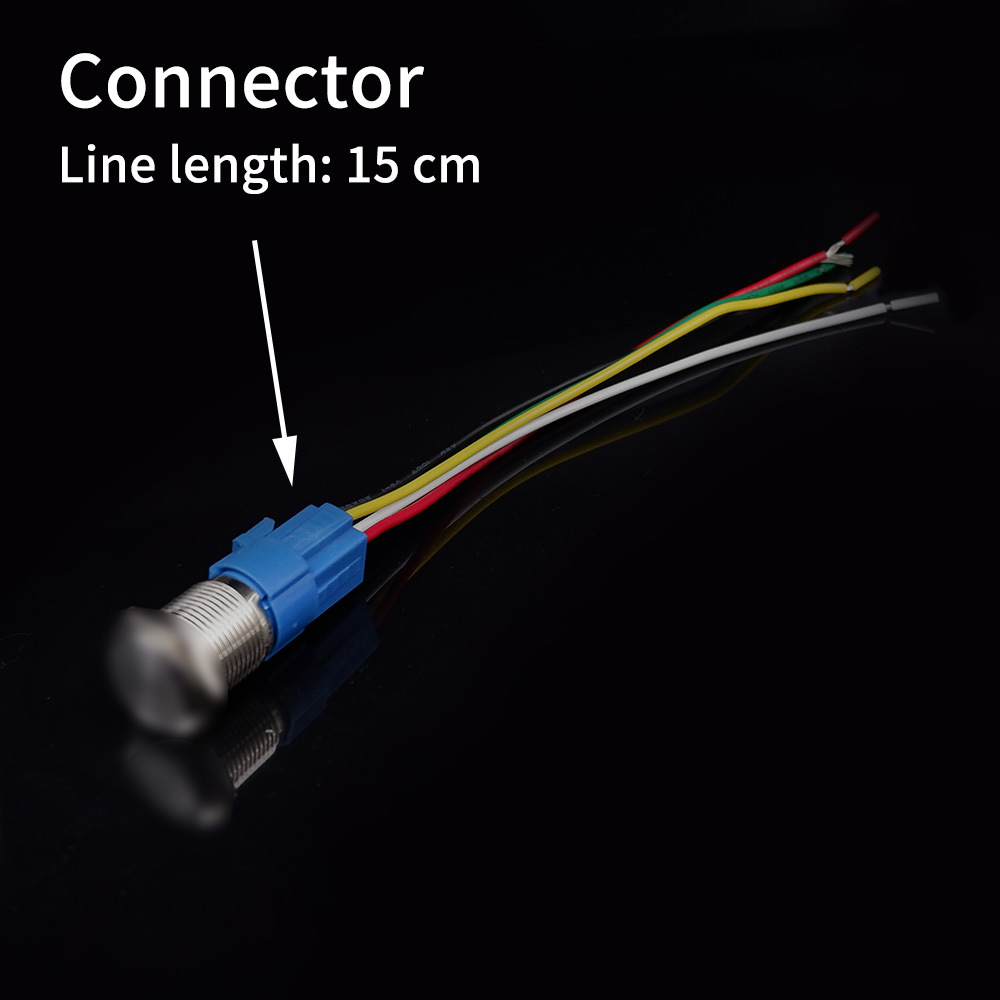

Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

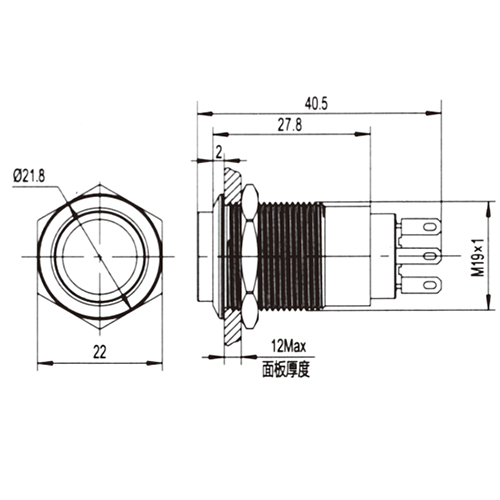

  Drawing product description: Product introduction : Metal push button switches with IP-rated sealing are designed for reliable operation in harsh industrial environments and outdoor enclosures. It is commonly used in manufacturing plants, chemical processing facilities and outdoor control systems due to its resistance to moisture, chemicals and physical impact. Application : Harsh Industrial Environments: These switches provide reliable control in manufacturing plants, chemical processing facilities, and outdoor control systems where resistance to extreme environmental conditions is critical for reliable operation.
