Specification:

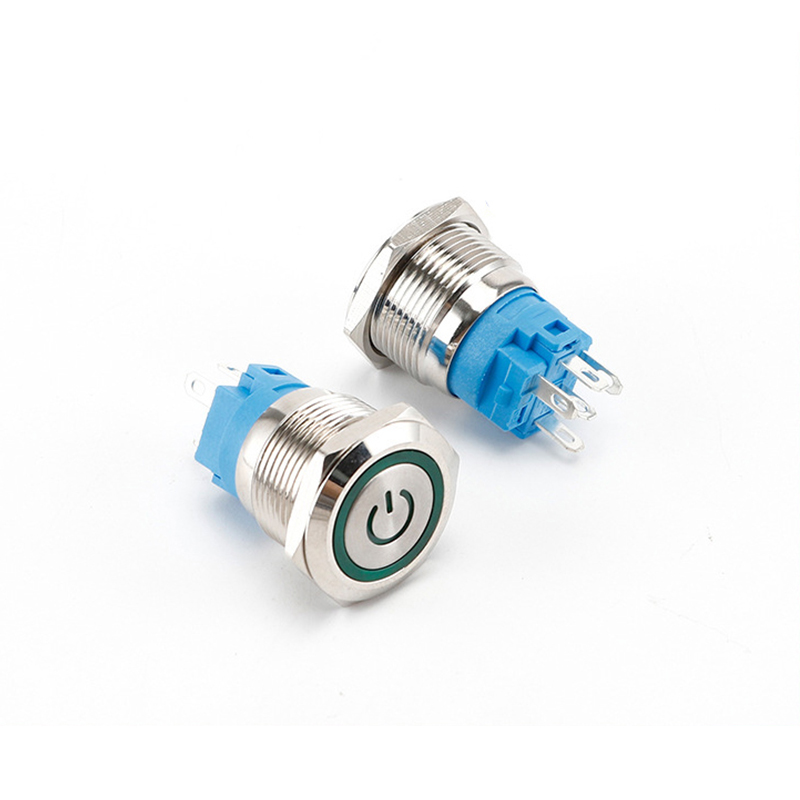

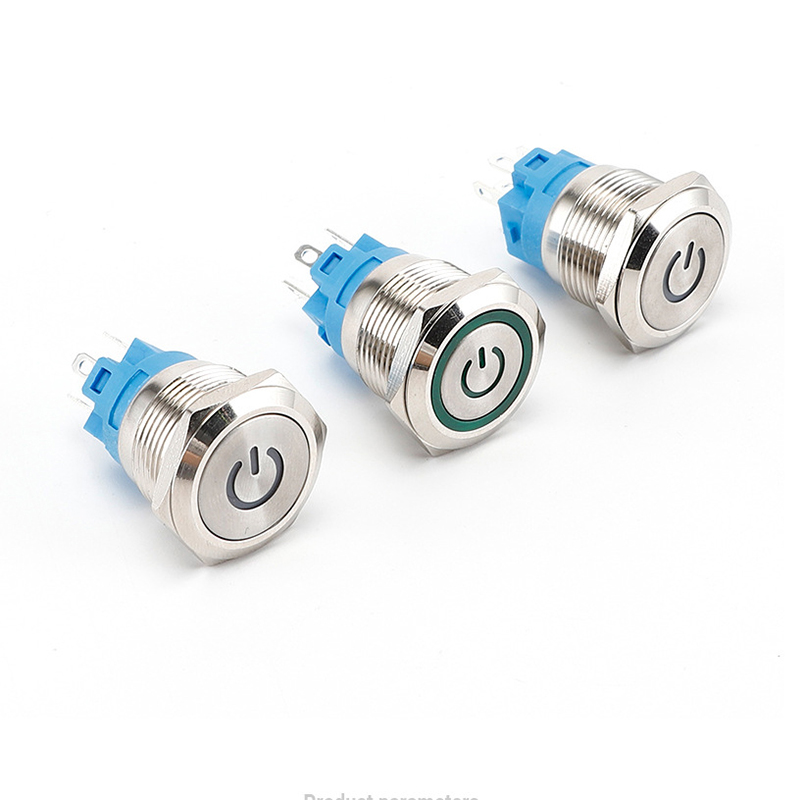

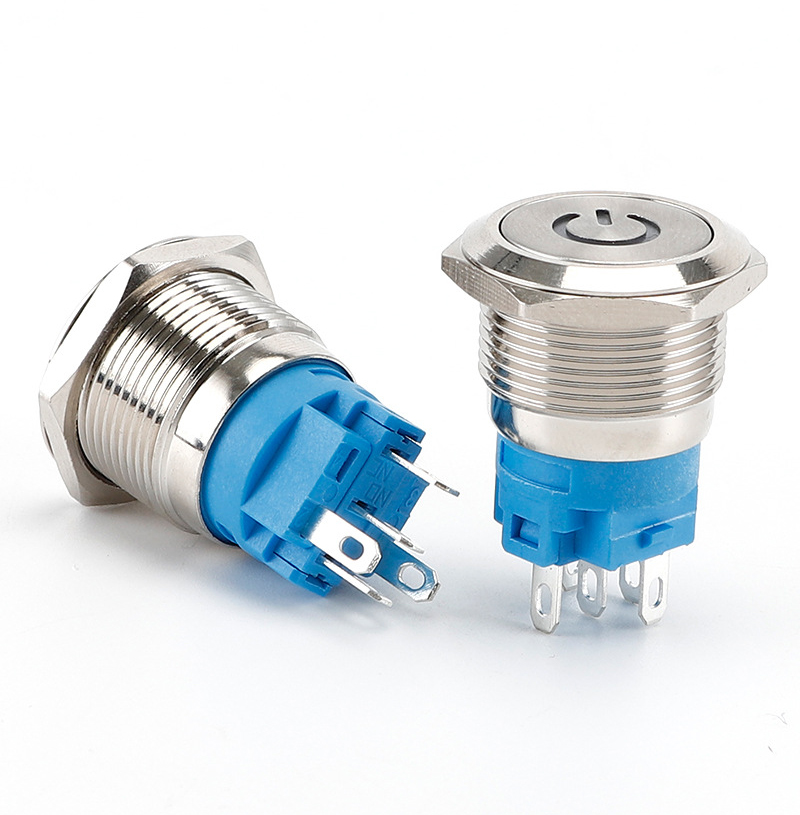

Product name:push button switch power switch
Material: Brass nickel plated / Stainless steel

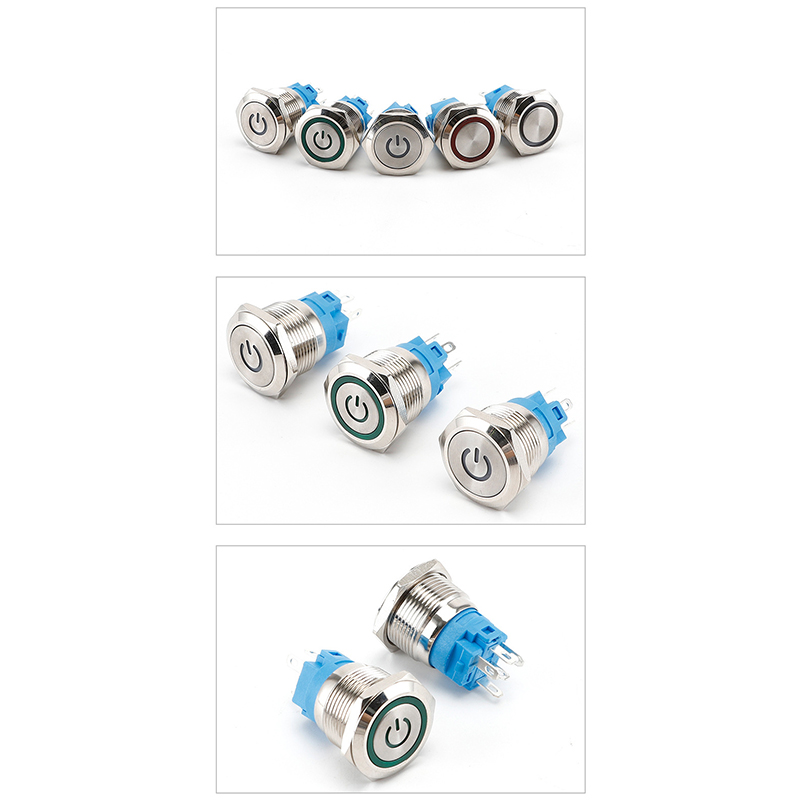

LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape:

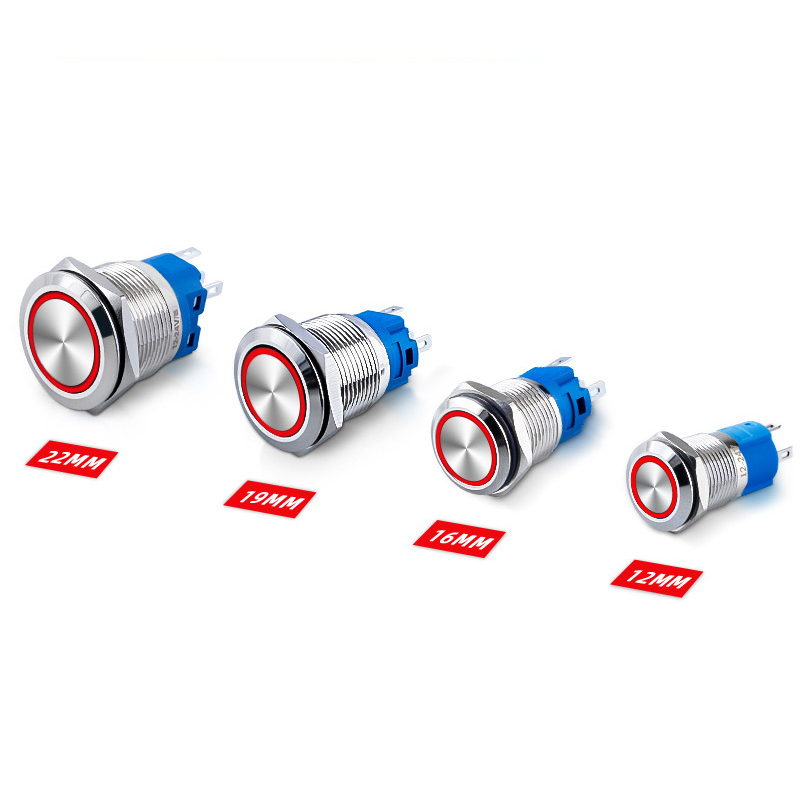

Flat head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-C11PCZ |
| Mounting Hole |
19mm |
| Operation Type |
latching |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Pins |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |

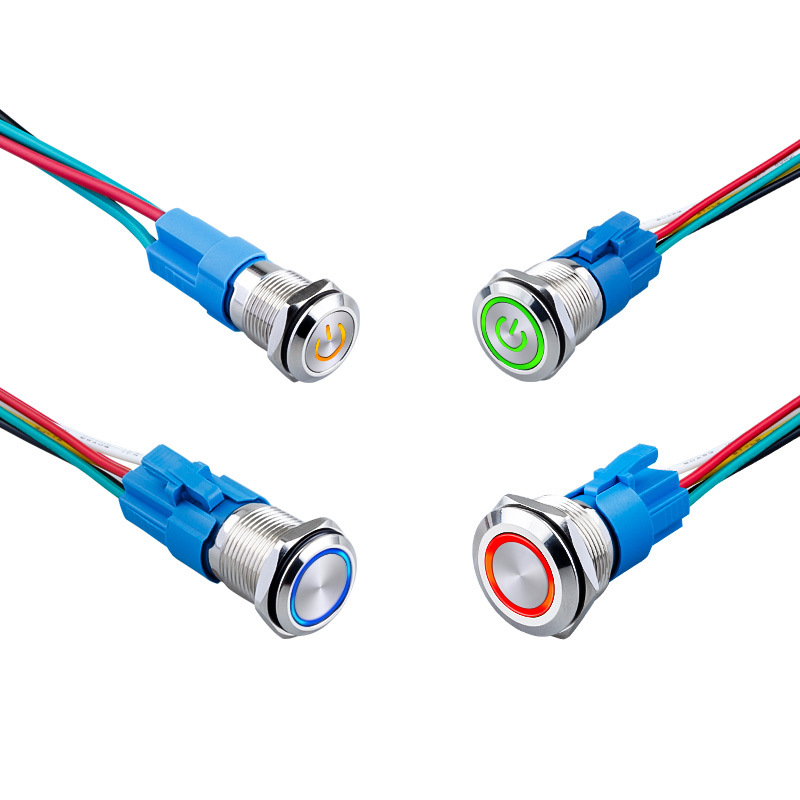

| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

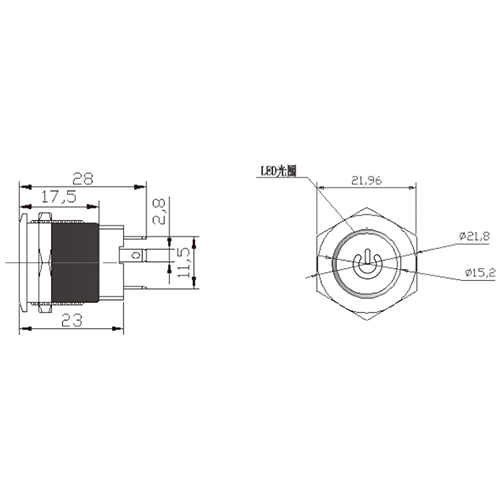

Drawing
Product introduction : This tamper-resistant switch is designed to withstand harsh environments and potential tampering, providing a safe and durable control solution for a variety of industrial and commercial environments. Its rugged construction and tamper-resistant properties make it a reliable choice for applications that require strong performance and protection from unauthorized access. The switch serves as a critical interface component, ensuring operational resiliency and user confidence in demanding environments.
Application : Outdoor equipment: Anti-vandal switches are integrated into outdoor equipment and infrastructure, such as utility controls, outdoor payment systems and environmental monitoring equipment. Its anti-vandal properties and secure drive mechanism help protect against environmental factors and unauthorized interference, ensuring reliable operation of outdoor equipment in harsh conditions.
