Specification:

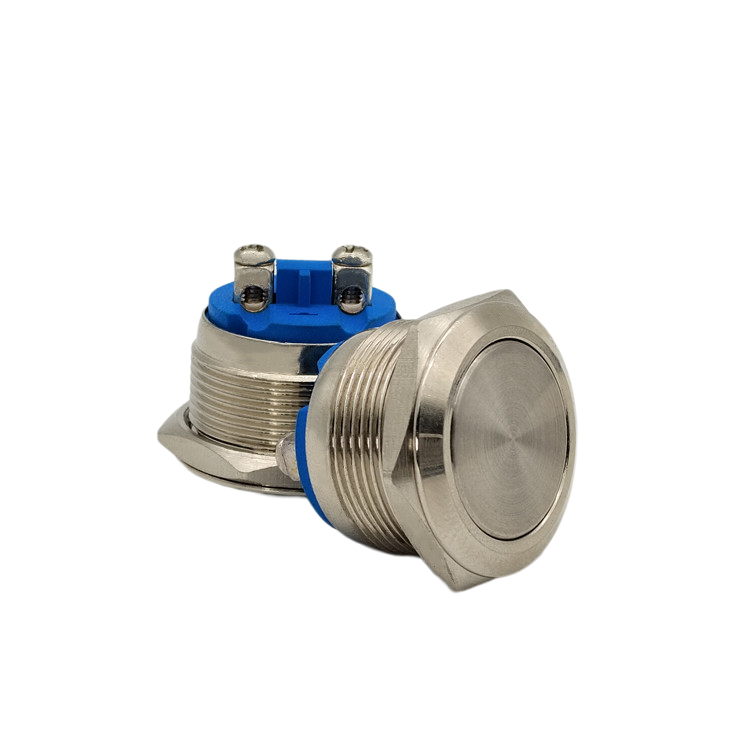

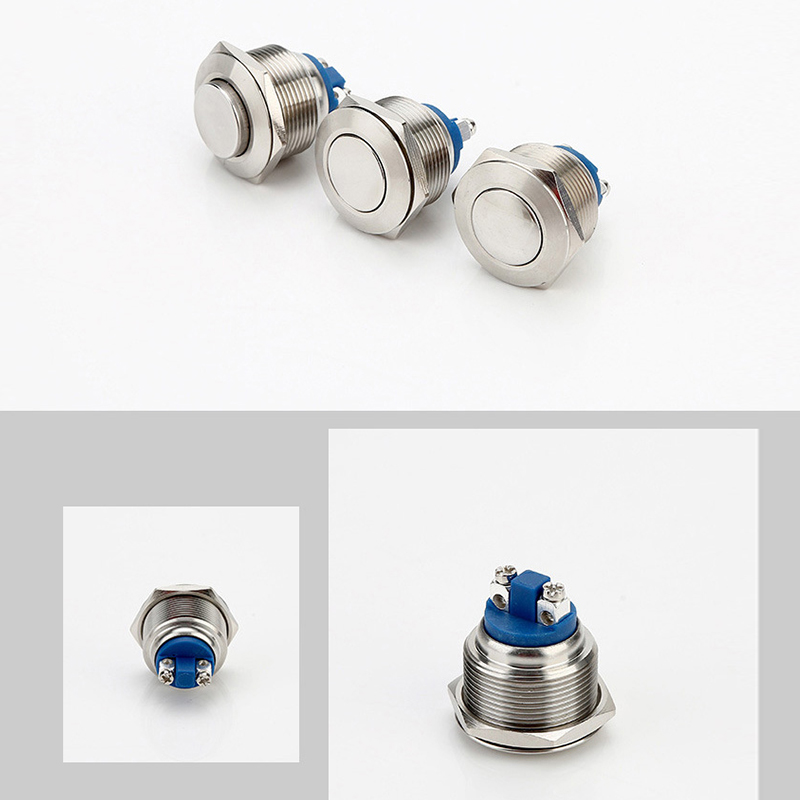

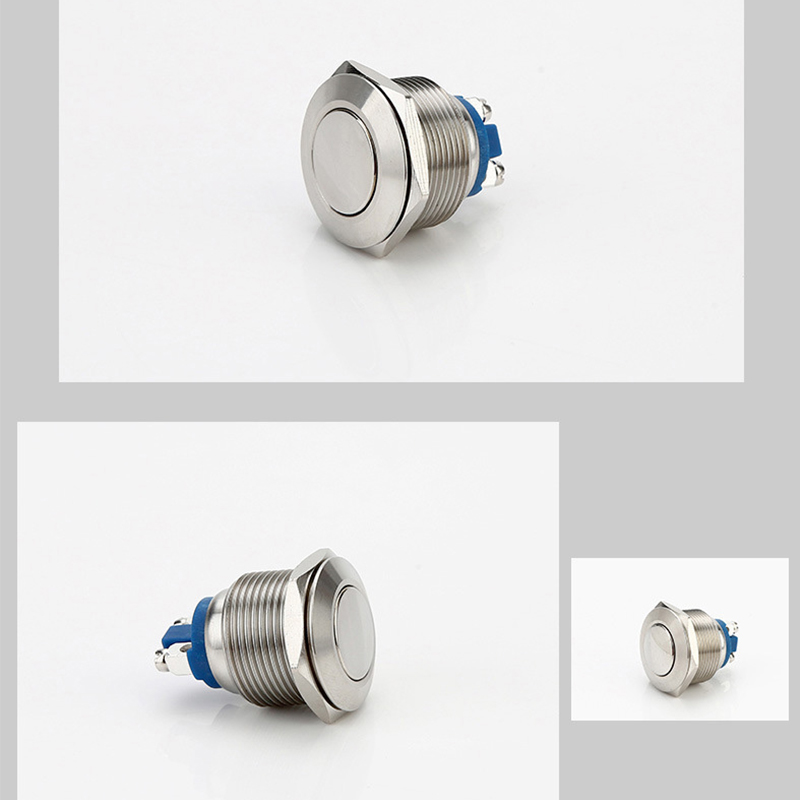

Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: no
Operation Type: Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape:
Flat head Hole size: 22mm
| Product Name |
Anti vandal switch |
| Model |
YL22C-A10P |
| Mounting Hole |
22mm |
| Operation Type |
Momentary |
| Switch Combination |
1NO |
| Head Type |
Flat head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

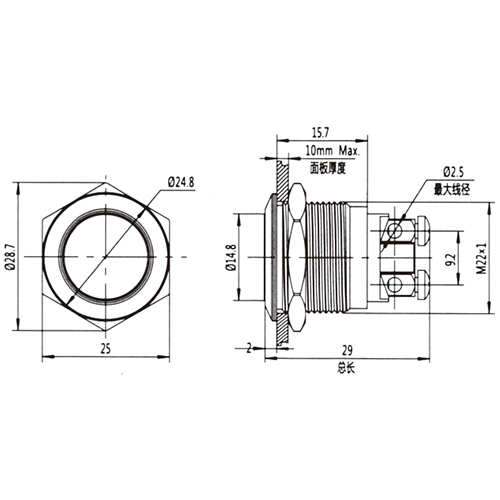

Drawing
Product introduction : Vandal-resistant metal push button switches are engineered to withstand intentional tampering and harsh conditions. It is ideal for public access control and security systems.
Application : Access Control: These switches are widely used in automatic doors, security doors and entrance systems in public facilities and commercial buildings to ensure safe and reliable operation.
