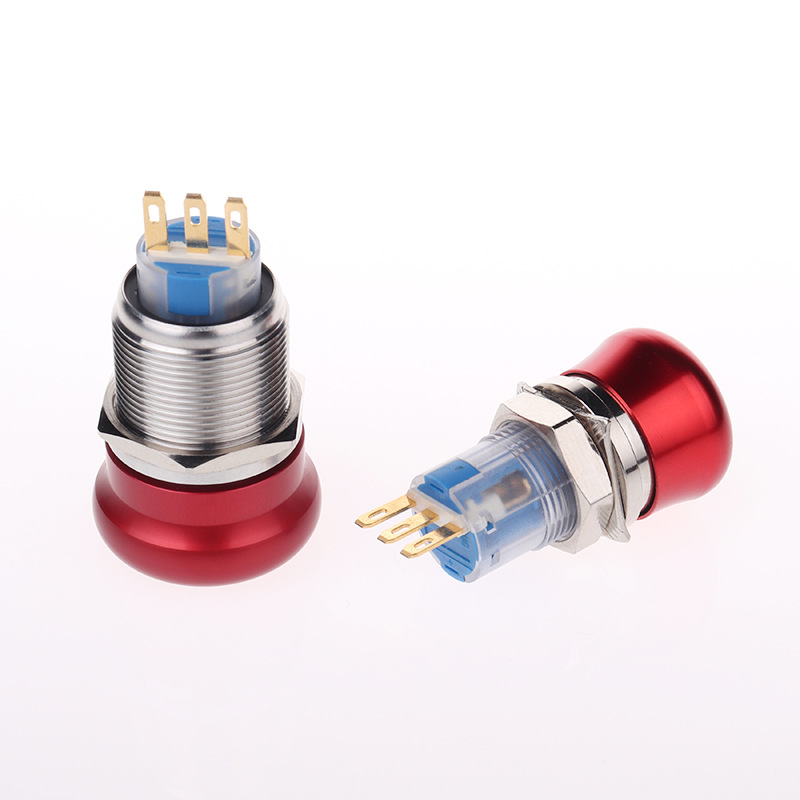

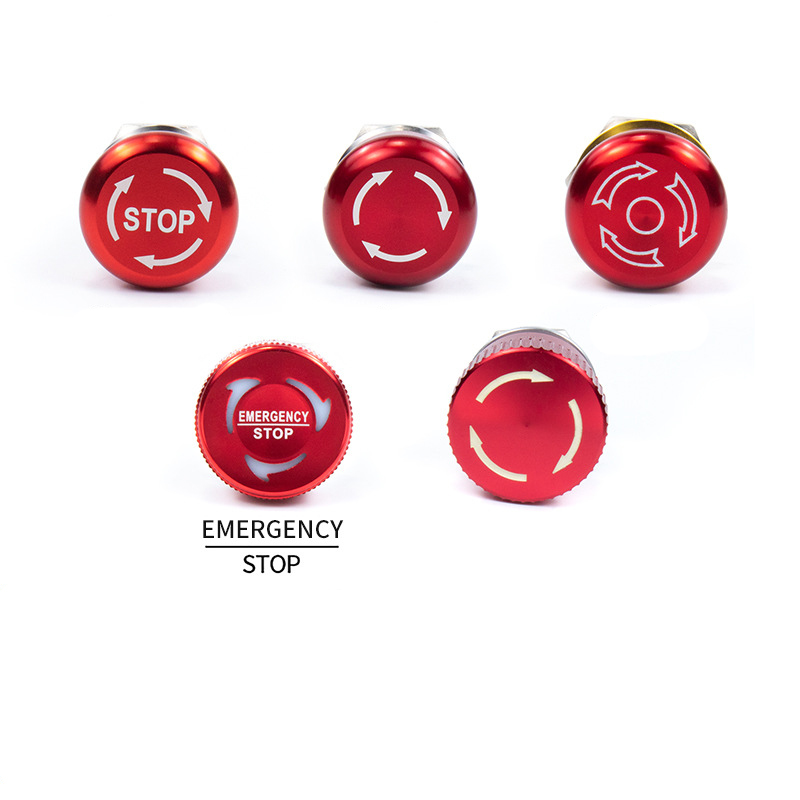

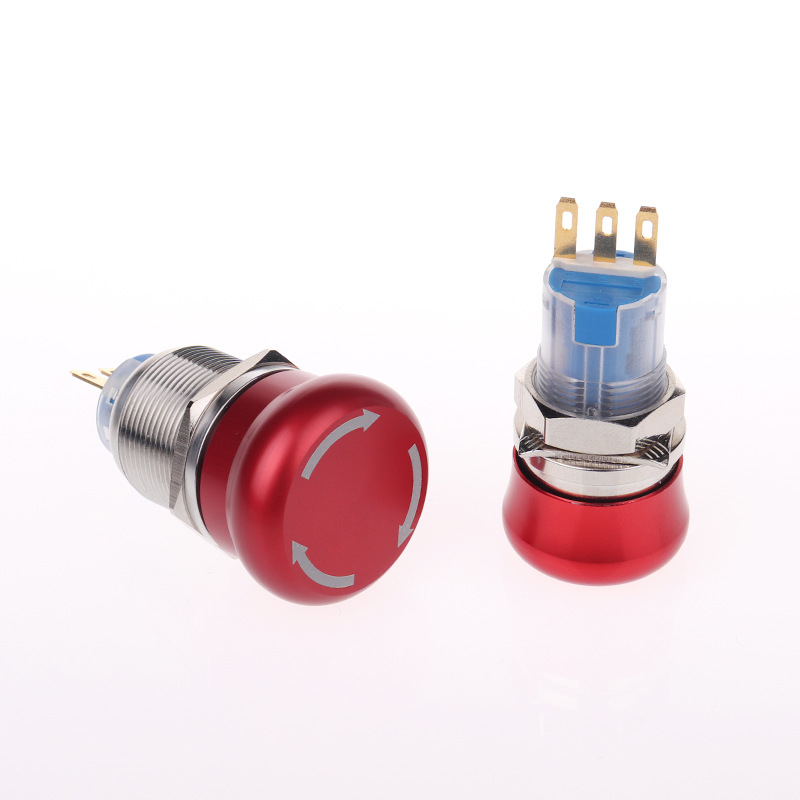

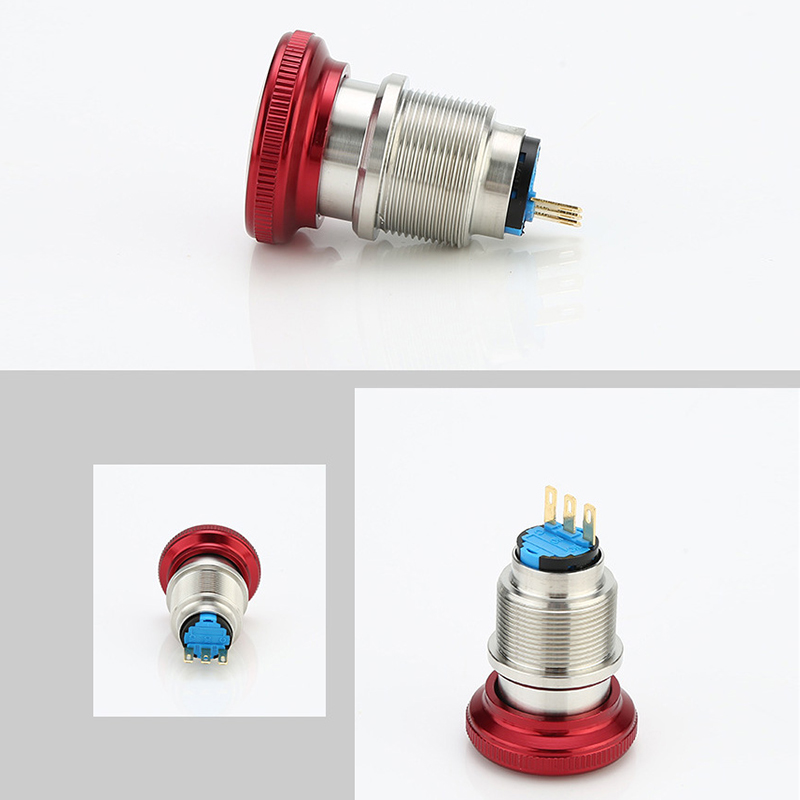

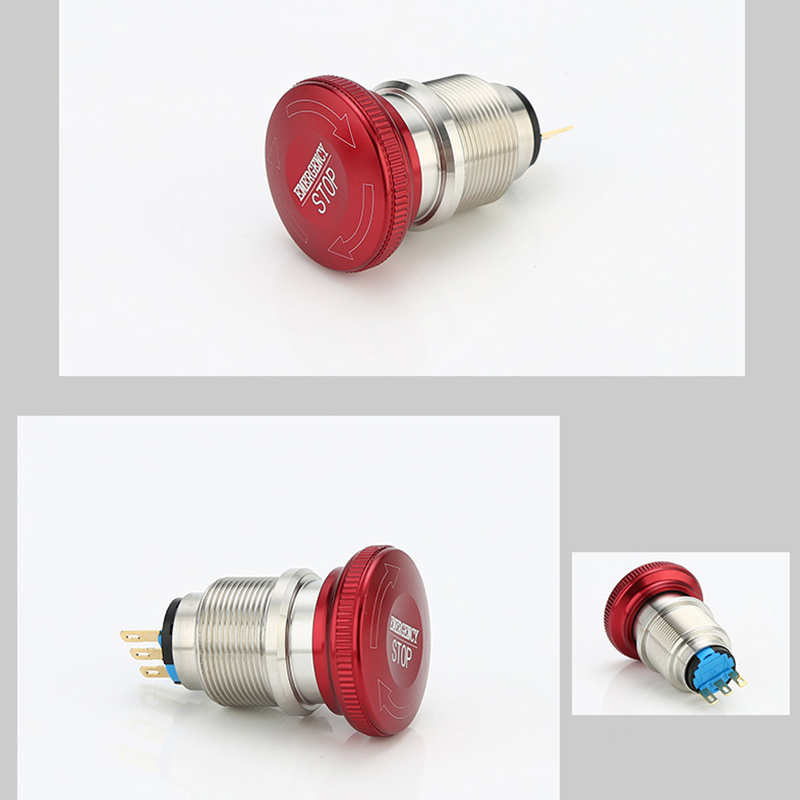

22mm mushroom head emergency stop button

Features:  Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.   Specification:  Product name mushroom head emergency stop button Material: Brass nickel plated / Stainless steel LED color: yes Operation Type:Momentary  type Rating: 5A/250VAC voltage: 12V or 3V, 5V, 24V, 110V, 220V Contact Configuration: 1NO1NC Head shape: Flat head  Hole size: 22mm
Product Name Push button switch
Model YL22C-D11J
Mounting Hole 22mm
Operation Type  Momentary
Switch Combination 1NO1NC
Head Type Flat head
Terminal type Pins Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

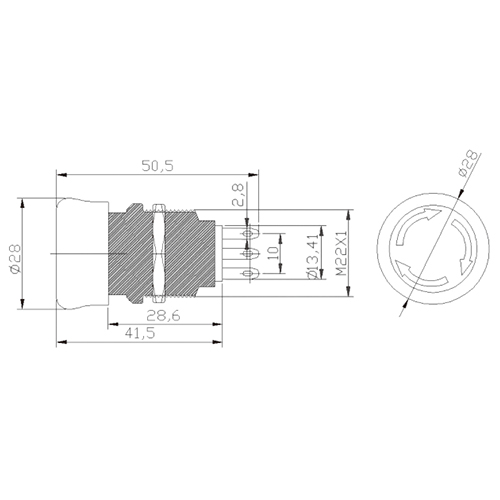

  Drawing Product introduction : Mushroom head emergency stop buttons are installed in various equipment and control systems and are important safety devices for quickly stopping operations in emergency situations. Its durable construction, clear visual cues and quick-access design make it an indispensable component for protecting people and machinery in industrial, manufacturing and commercial environments. Application : Commercial equipment: Mushroom head emergency stop buttons are integrated into various commercial equipment, such as large printing presses, packaging machinery, industrial ovens, etc. Its fast and intuitive operation enables operators to instantly stop equipment during critical events, minimizing risk and ensuring the safety of personnel and assets in commercial production environments.
