Specification
| Product Name |

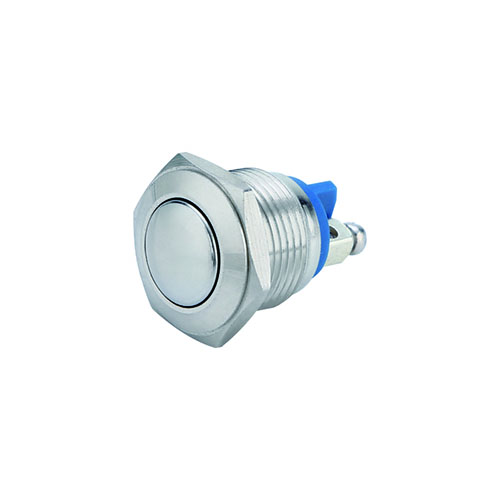

Push button switch |
| Model |
YL16C-B11QZ |
| Mounting Hole |
16mm |
| Operation Type |
Latching |
| Switch Combination |
1NO1NC |
| Head Type |
Dome head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |
Drawing
product description
Meet our Anti-Vandal Switch – a symbol of toughness and precision. Engineered to withstand tampering and excel in challenging environments, this switch is the ultimate choice for security-conscious applications.
Constructed from high-quality stainless steel, the Anti-Vandal Switch boasts a vandal-proof design and exceptional durability. Its momentary action ensures reliable performance, and the optional LED illumination enhances its functionality and visual appeal.
Secure your equipment with confidence. Choose the Anti-Vandal Switch for peace of mind and lasting quality.
Our Anti-Vandal Switch is the pinnacle of security and style. Designed to deter tampering and provide reliable performance, this switch is the perfect choice for applications where ruggedness is essential.
Crafted from durable stainless steel, the Anti-Vandal Switch can withstand vandalism attempts and harsh environmental conditions. Its momentary action ensures precise control, and the optional LED illumination adds functionality and elegance.
Enhance your equipment's security and appearance with our Anti-Vandal Switch today.
Anti-Vandal Switch Product Application
Elevator Control Panels
Elevators are a vital part of modern buildings, and their control panels must be reliable and secure. Our Anti-Vandal Switches are the perfect choice for elevator control panels, ensuring smooth and safe operation while deterring tampering.
