Specification:

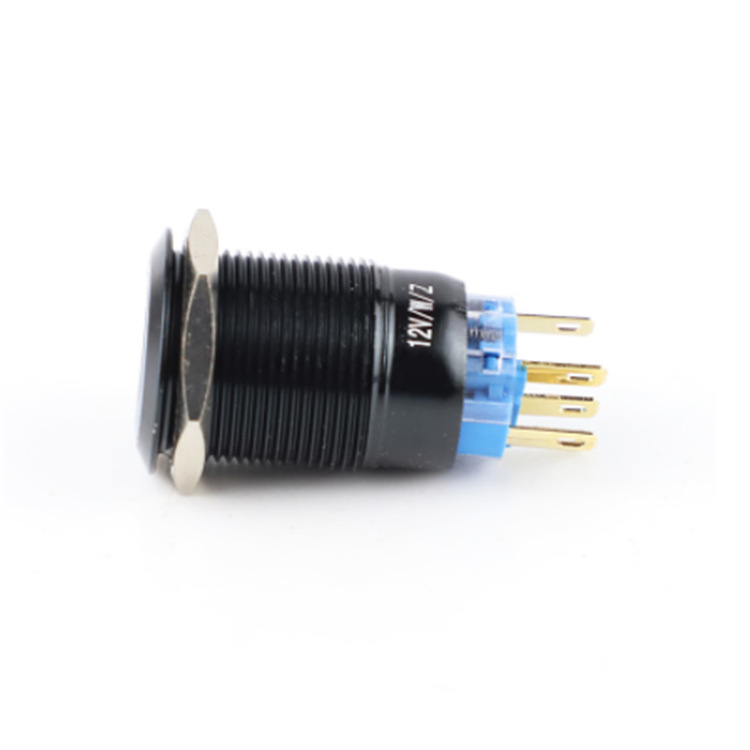

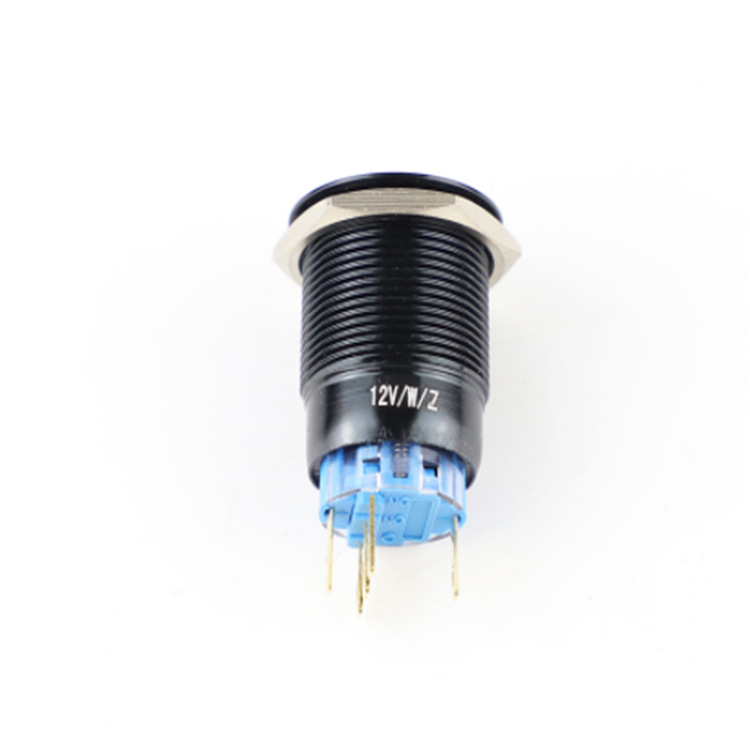

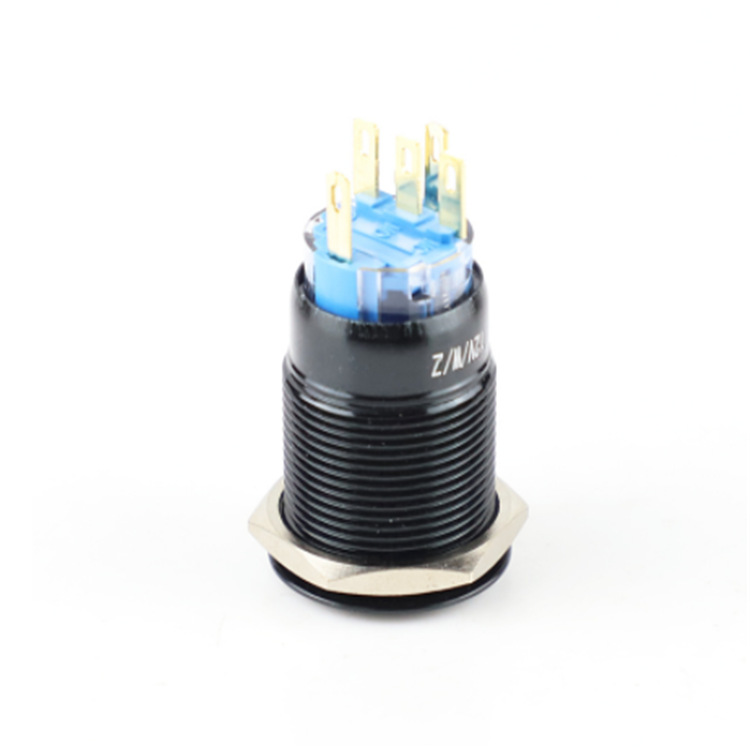

Product name:automotive momentary push button switch for horn
switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape:
Flat head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-C |
| Mounting Hole |
19mm |
| Operation Type |
Momentary |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |

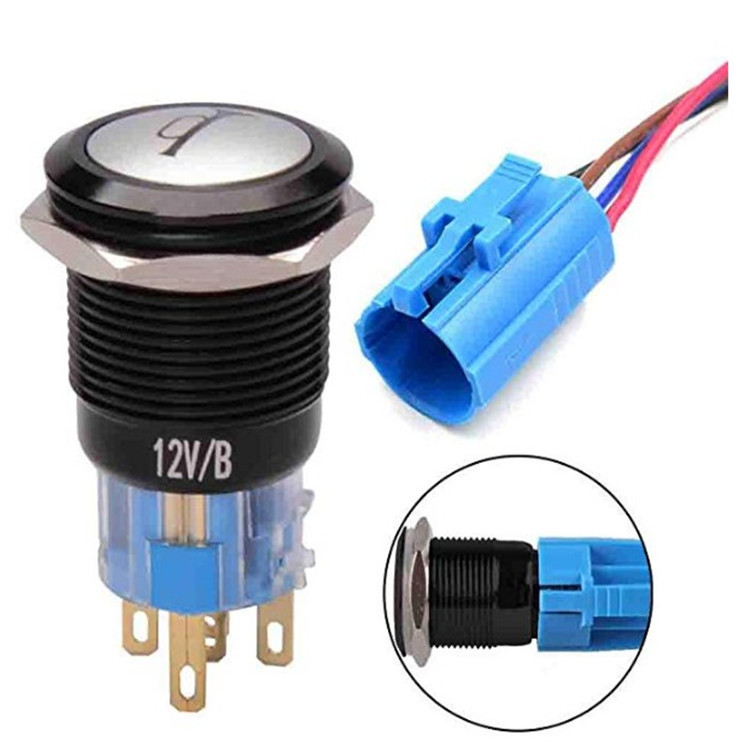

| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |
Drawing

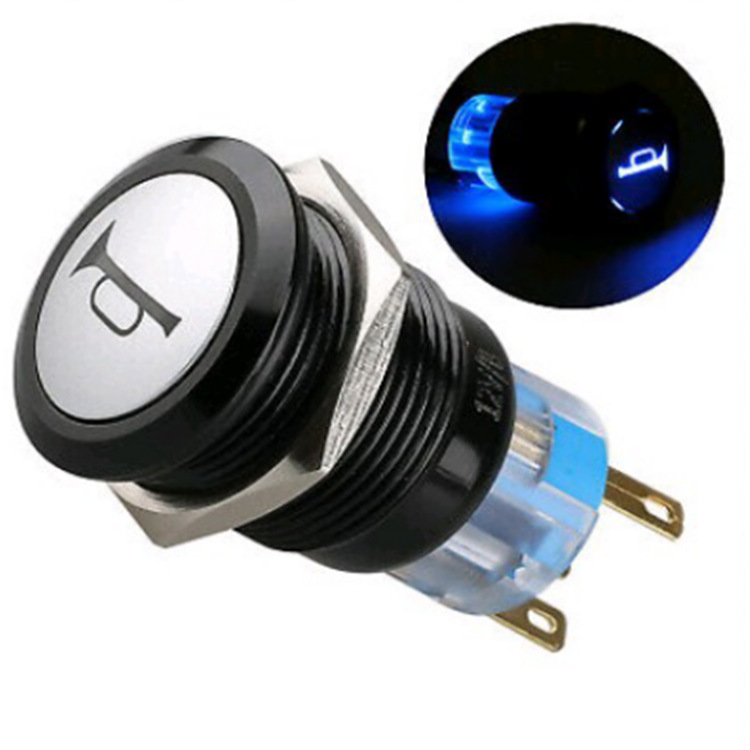

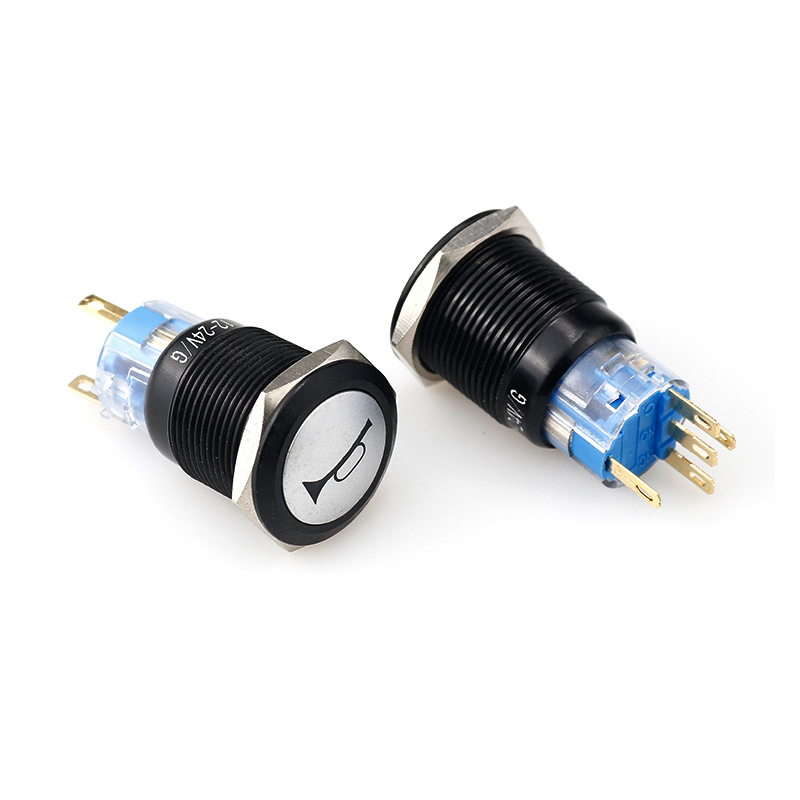

Designed for robust performance and enhanced user interaction, this vandal-resistant switch with automotive horn symbol provides durability and safety in automotive and transportation environments. Its rugged design and tamper-proof features make it ideal for applications that require reliable control and protection against unauthorized operation. The addition of the car horn symbol provides a recognizable and efficient way to access critical functions while maintaining operational integrity and safety.
Application ： Public Transportation Systems: Anti-vandal switches with car horn symbols are used in public transportation control panels, bus safety systems and train passenger announcement controls. Its vandal-proof construction and intuitive symbolic representation contribute to reliable and safe operation, allowing clear user interaction while blocking unauthorized interference in the public transport environment, ensuring passenger safety and operational continuity.
