Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
e Operation Type: Latching type
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 12mm
| Product Name |
Push button switch |
| Model |
YL12C-C11PCZ |
| Mounting Hole |
12mm |
| Operation Type |
Latching |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
PINS Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

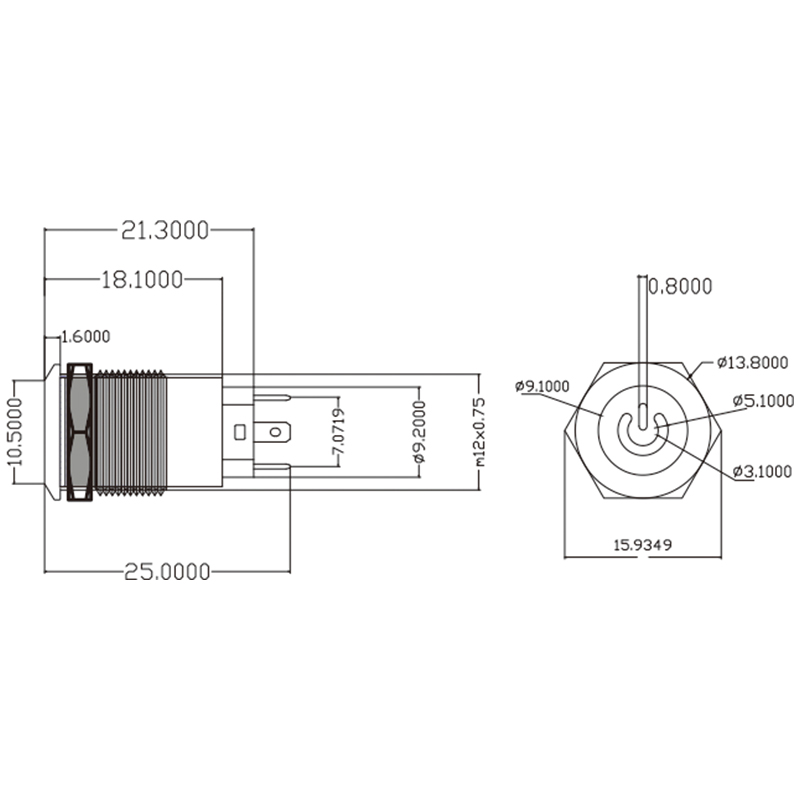

Drawing
Product introduction : Our metal push button switches feature a sleek, modern design that's perfect for consumer electronics and appliances. Illuminated options provide visual feedback and enhance the user interface.
Application : Consumer Electronics: These switches are commonly used in devices such as audio amplifiers, home appliances, and gaming peripherals for power on/off and mode selection.
