Specification:

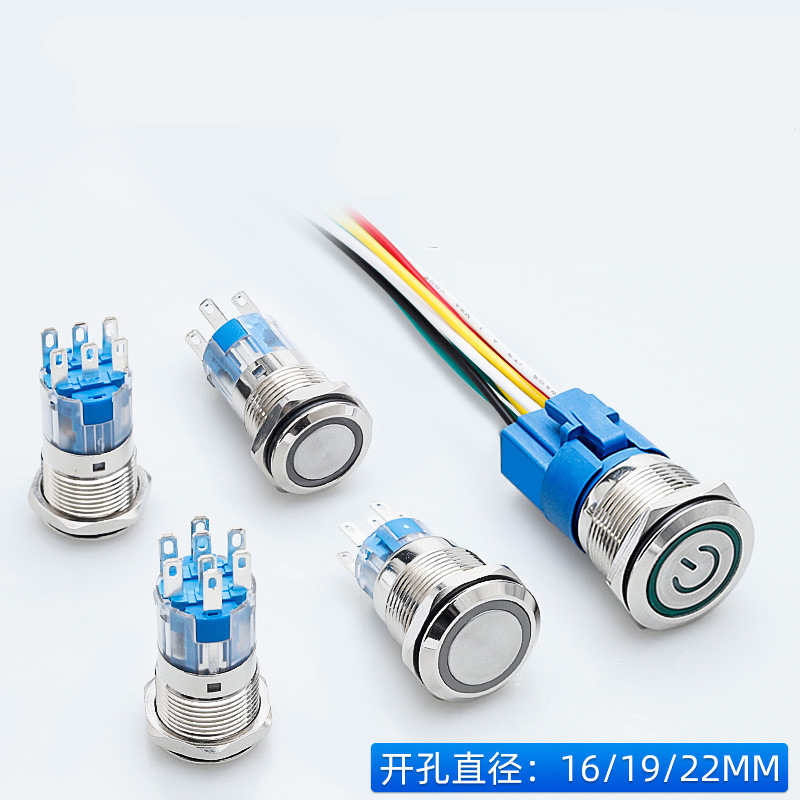

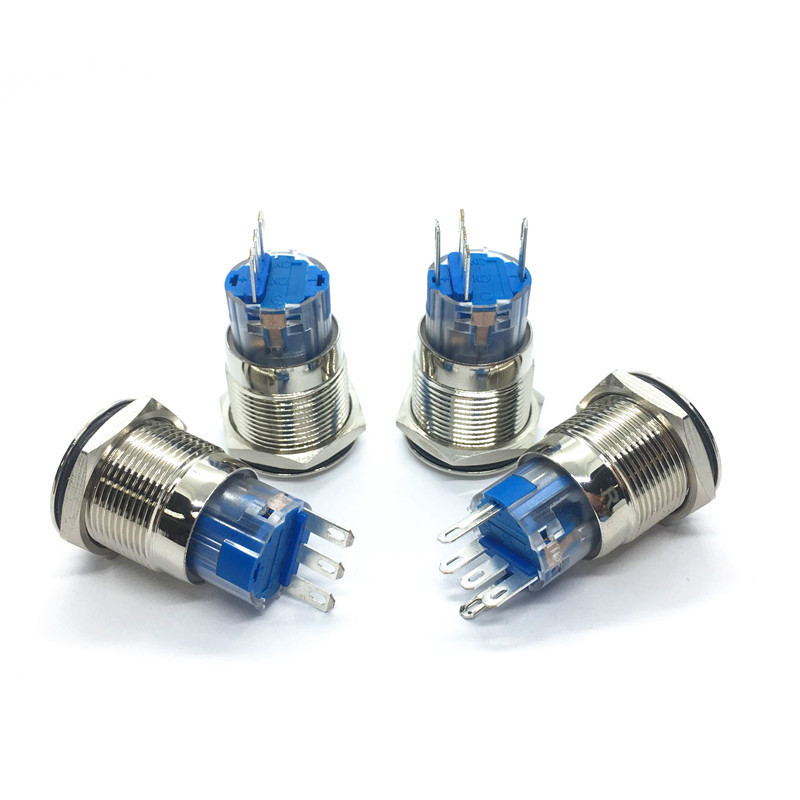

Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 2NO2NC

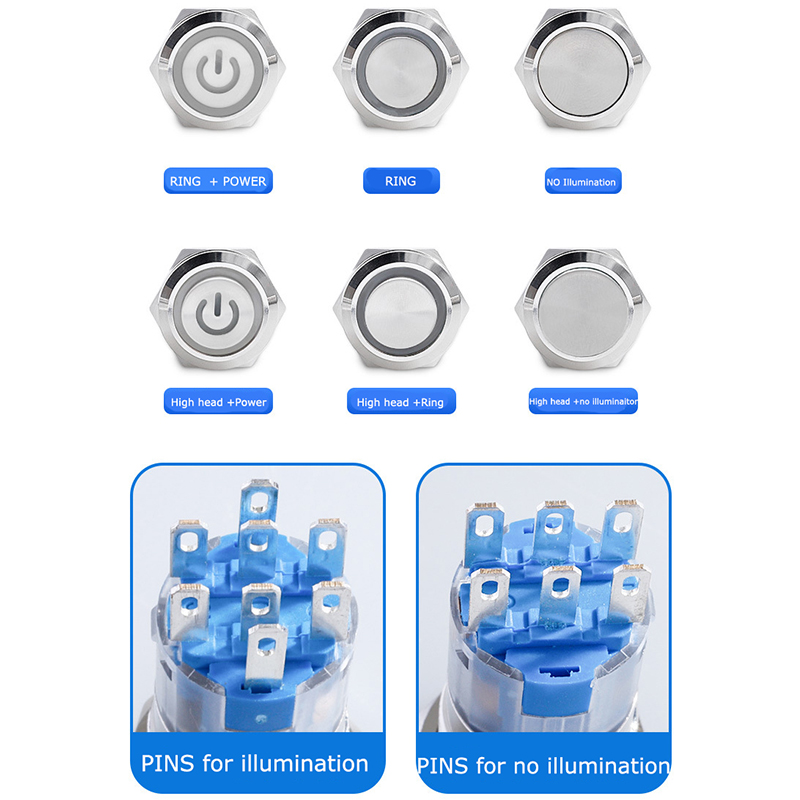

Head shape:
High head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-B22PEZ |
| Mounting Hole |
19mm |
| Operation Type |
latching |
| Switch Combination |
2NO2NC |
| Head Type |
Flat head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |

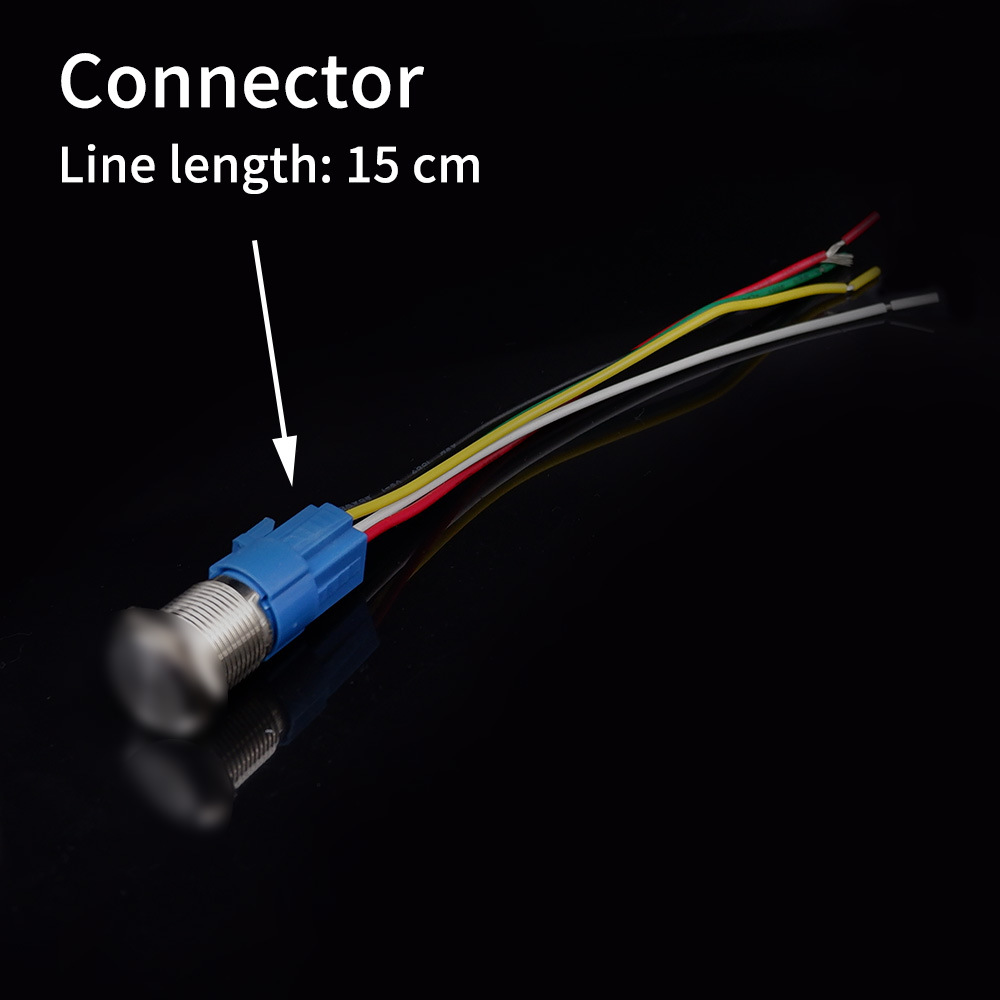

| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

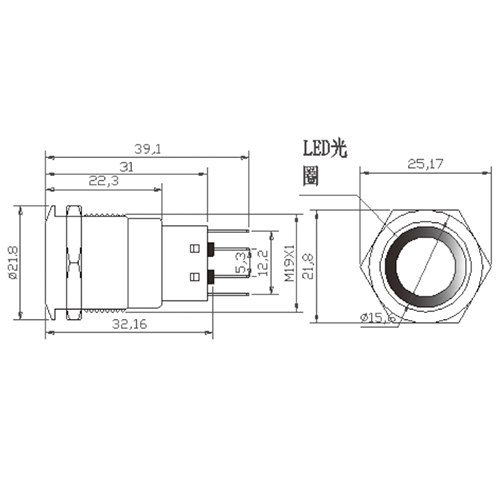

Drawing
Product introduction :
Designed for harsh outdoor applications, our metal push button switches are weatherproof and corrosion resistant. It is suitable for outdoor equipment, agricultural machinery and marine applications where durable and reliable control is critical in outdoor and marine environments.
Application :
Outdoor and Marine Equipment: Typically used in outdoor lighting controls, agricultural machinery, and marine navigation panels, these switches provide reliable, weatherproof control for outdoor and marine applications.
