Specification:

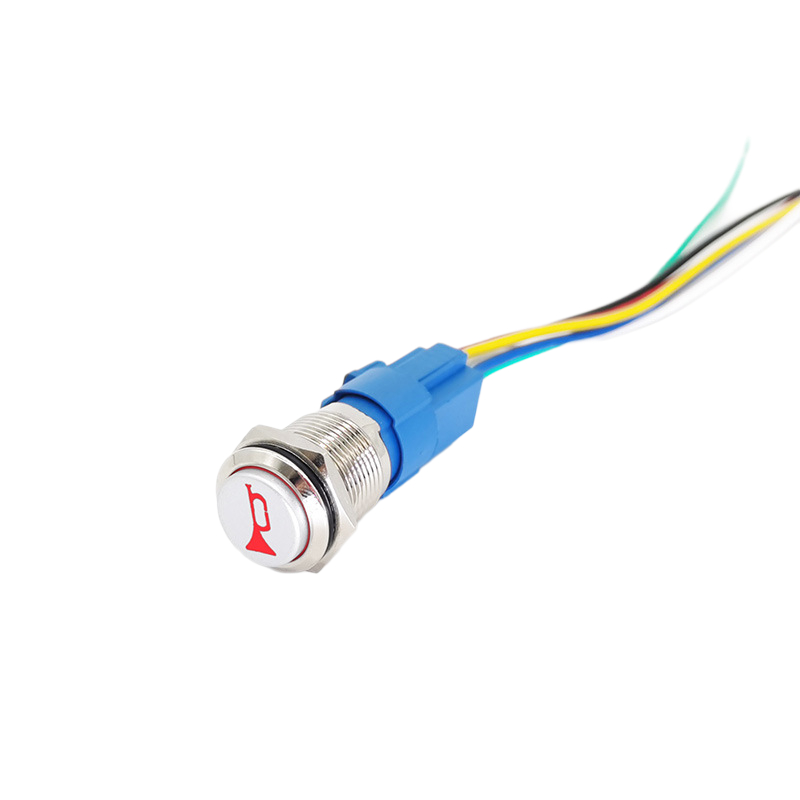

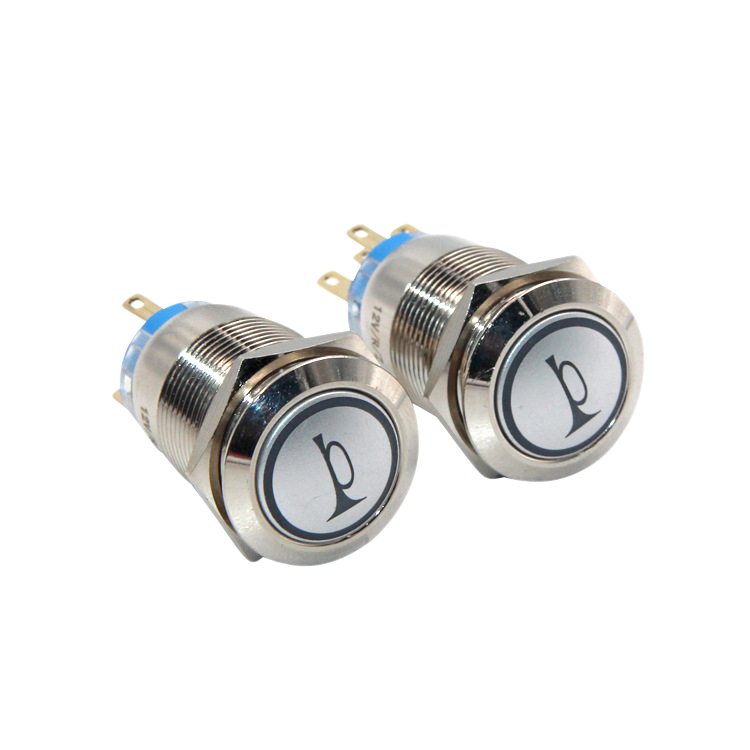

Product name:illuminated momentary push button car horn switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape:
Flat head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-C2 |
| Mounting Hole |
19mm |
| Operation Type |
Momentary |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |
Drawing
Product introduction : The Vandal Resistant Switch with Car Horn Symbol is a rugged and tamper-resistant control device designed to withstand challenging conditions and unauthorized interference. Its durable construction and safe actuation make it an essential component in ensuring operational integrity and safety in automotive and transportation applications. The addition of the car horn symbol adds to an intuitive and user-friendly interface, allowing quick and reliable access to key functions while blocking unauthorized operation.
Application : Vehicle Security Systems: Anti-vandal switches with car horn symbols are often integrated into car security systems, car alarms and vehicle stationary controls. Its tamper-resistant properties and clear symbolic indication increase user confidence while deterring tampering, ensuring reliable operation and greater safety of the vehicle and its onboard control systems.
