Specification:
Product name illuminated momentary push button
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary type
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: Flat head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-C11PE |
| Mounting Hole |
19mm |
| Operation Type |
Momentary |
| Switch Combination |
1NO |
| Head Type |
Flat head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

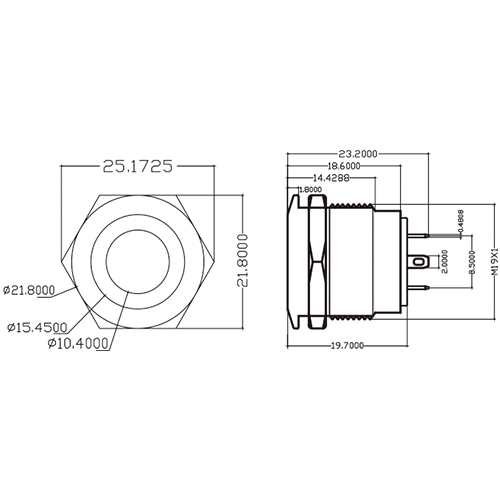

Drawing
Product introduction : The tamper-resistant switch is a rugged, tamper-resistant control device designed to withstand challenging conditions and unauthorized interference. With its durable construction and safe actuation, this switch provides a reliable solution to ensure operational integrity and safety in a variety of industrial and commercial applications. Its anti-vandal properties make it an important component in protecting critical controls and increasing user confidence in the control system.
Application : Financial equipment: Anti-vandal switches are commonly used in ATMs, cash dispensers and secure transaction terminals. Its anti-vandal features and security drivers help prevent tampering and unauthorized access, ensuring reliable operation of financial devices and enhancing the security with which users conduct transactions.
