Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size:6mm
| Product Name |
Push button switch |
| Model |
YL6S |
| Mounting Hole |
6mm |
| Operation Type |
momentary |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Screw Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
7 -10days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

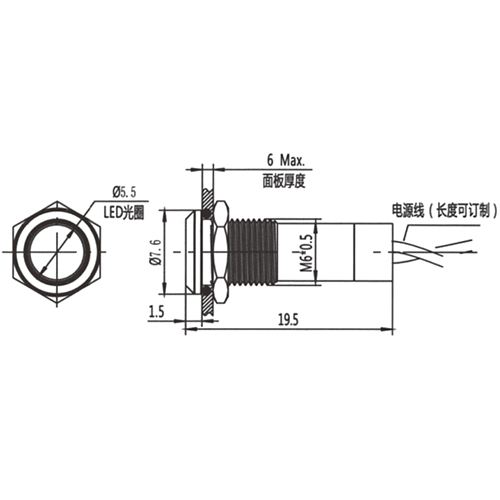

Drawing
Product features : Metal pilot lights are encased in a rugged, corrosion-resistant metal housing, ensuring durability and longevity in industrial environments. Its rugged construction makes it suitable for heavy-duty applications where reliability is critical.
Related Applications:
Industrial control panels
Machinery status indicators
Automation and manufacturing equipment
Product Introduction: Our metal indicator light is designed to provide reliable visual indication in harsh environments. The rugged metal housing makes it suitable for use in outdoor applications, such as on heavy-duty equipment, vehicles, and outdoor enclosures.
