Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size:19mm
| Product Name |
Push button switch |
| Model |
YL19C-XD10 |
| Mounting Hole |
19mm |
| Operation Type |
momentary |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Screw Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
7 -10days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

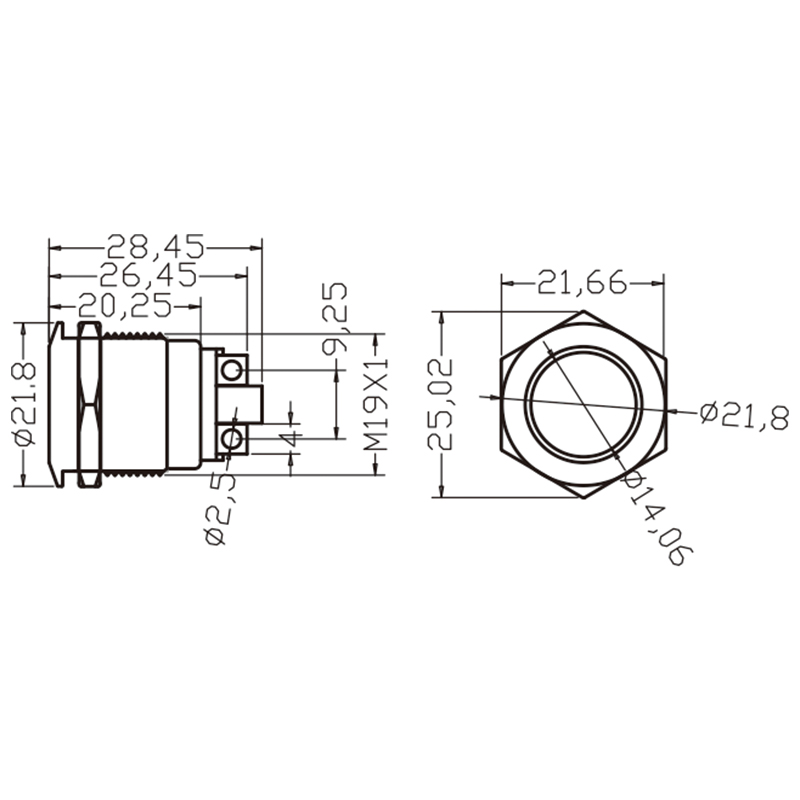

Drawing
Product Features : This metal indicator light has a wide operating voltage range and is compatible with a variety of electrical systems and can adapt to fluctuating voltage levels without affecting performance.
Related Applications:
Vehicles (e.g., trucks, buses)
Aircraft
Railway systems
Product Introduction: The metal indicator light is an integral part of machinery and equipment in the construction and mining industries. Its rugged construction and high-visibility indicators make it suitable for use in heavy machinery, conveyor systems, and construction equipment, providing clear status indication in challenging environments.
