Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color:NO
Operation Type:Momentary latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Hight head Hole size: 16mm
| Product Name |
Push button switch |
| Model |
YL16C-P11X |
| Mounting Hole |
16mm |
| Operation Type |
Momentary Latching |
| Switch Combination |
1NO1NC |
| Head Type |
HIGH head |
| Terminal type |
Pins Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

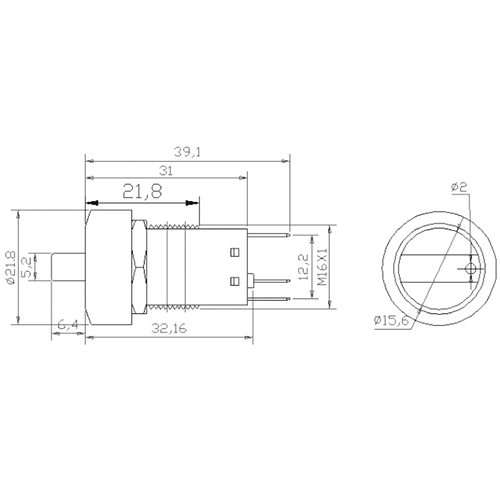

Drawing

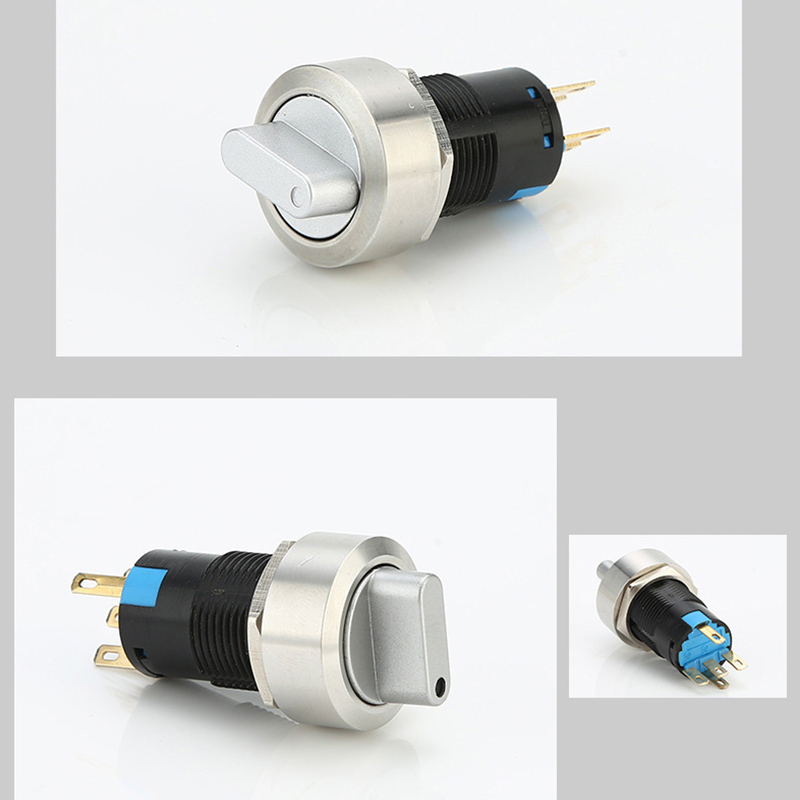

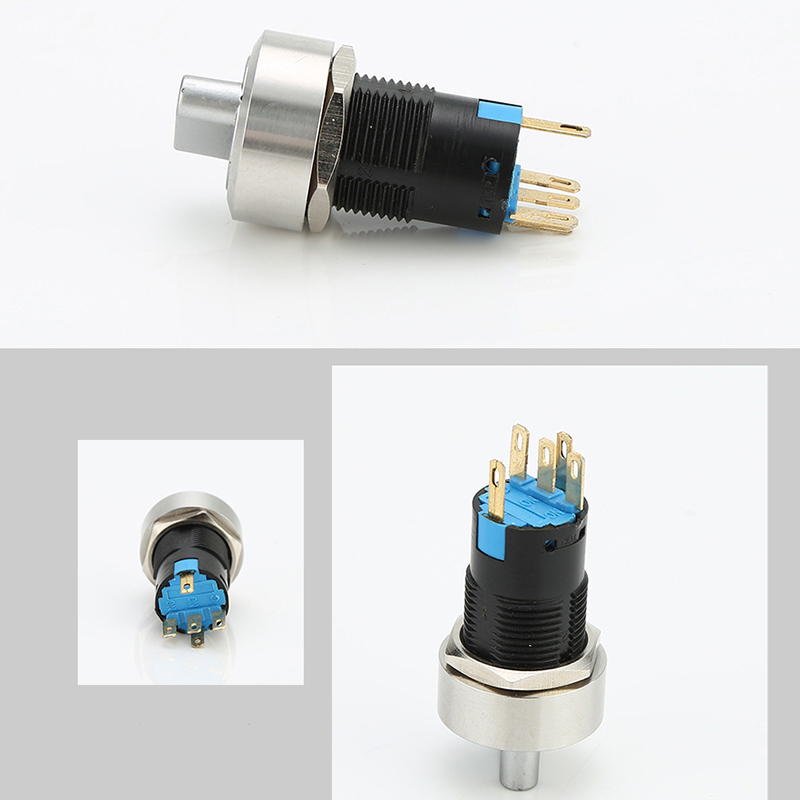

Product introduction : Our metal push button switches with knobs combine durability and functionality for a variety of applications. Metal construction ensures reliability in demanding environments, while the knob provides precise control and operational flexibility. This switch is ideal for use in equipment control panels, industrial machinery and automotive applications that require robust performance and precise control.
Application : Industrial Machinery Controls: Metal push button switches with knobs are commonly used on industrial machinery such as lathes, milling machines, and industrial presses to provide operators with a tactile and precise control interface for various operating functions.
