Specification:
Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: no
Operation Type: Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape:
Flat head Hole size: 19mm
| Product Name |
Anti vandal switch |
| Model |
YL19C-A10P |
| Mounting Hole |
19mm |
| Operation Type |
Momentary |
| Switch Combination |
1NO |
| Head Type |
Flat head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

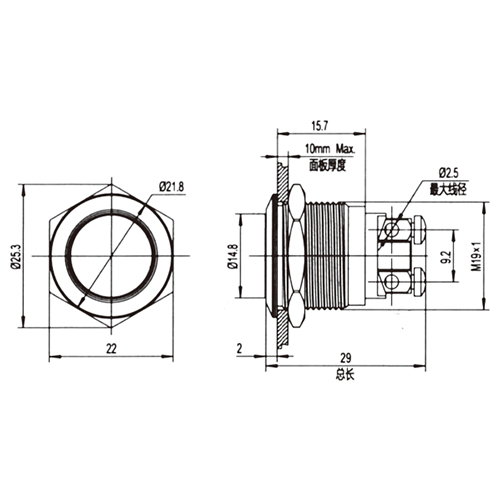

Drawing
Product introduction : Vandal-resistant metal push button switches are designed to withstand intentional tampering and rough use, making them suitable for use in public access control and security systems. With its sturdy structure and tamper-proof design, it is widely used in automatic doors, security doors and access control systems in public facilities and commercial buildings.
Application : Access Control and Security: These switches play a vital role in access control systems, security gates, and automated entry systems to ensure the safe and secure operation of public and commercial facilities.
