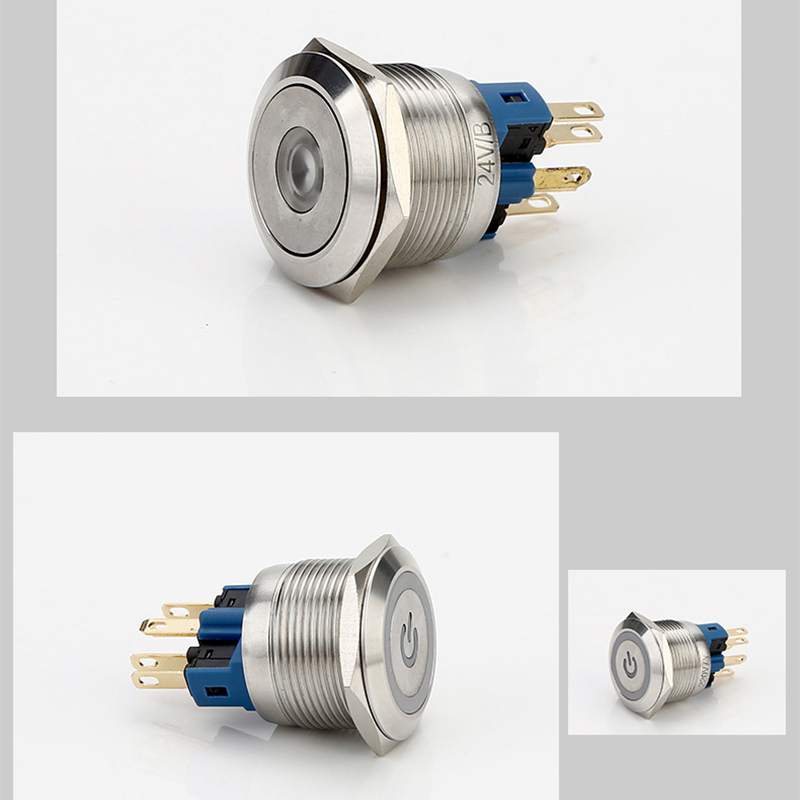

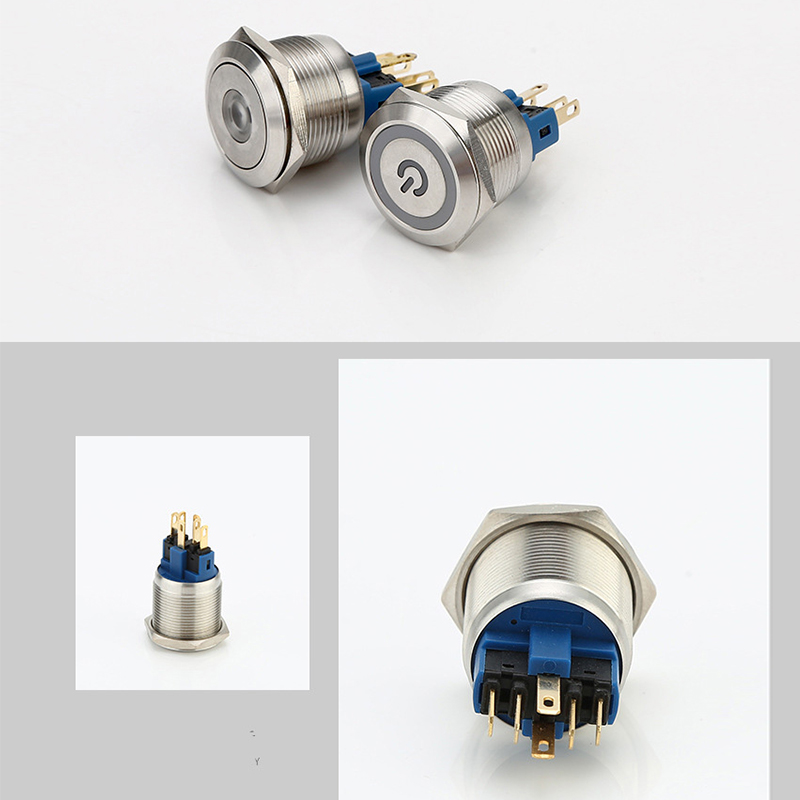

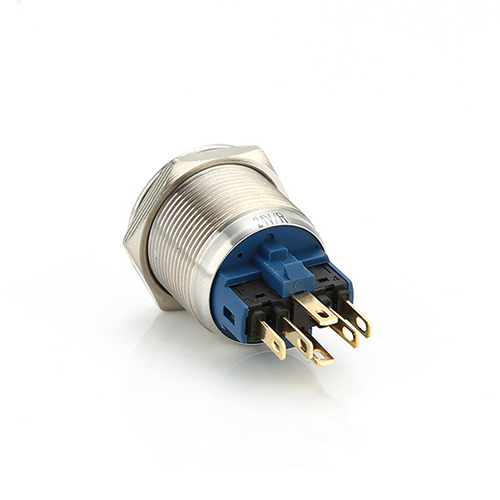

momentary push button switch with led

Specification:  Product name:momentary push button switch with led Material: Brass nickel plated / Stainless steel LED color: No Operation Type: Momentary Rating: 5A/250VAC LED voltage: 12V or 3V, 5V, 24V, 110V, 220V Contact Configuration: 1NO1NC Head shape:  High  head  Hole size: 22mm
Product Name Push button switch
Model YL22C-B11PD
Mounting Hole 22mm
Operation Type Momentary
Switch Combination 1NO1NC
Head Type High  head
Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

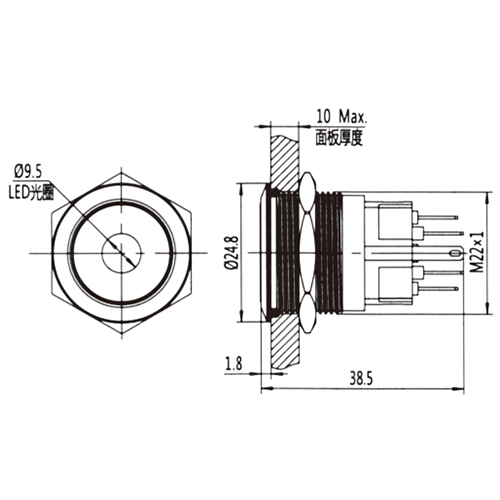

  Drawing Product introduction : Our metal push button switches feature customizable actuator shapes, legends and symbols, providing flexibility for design integration and user interface customization. Application : Special Equipment: These switches are integrated into special equipment and instruments and require custom legends and symbols for clear and intuitive operation.
