Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name
mushroom head emergency stop button
Material: Brass nickel plated / Stainless steel
LED color: yes
Operation Type:Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-O11J |
| Mounting Hole |
19mm |
| Operation Type |
Momentary |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Pins Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |
Drawing

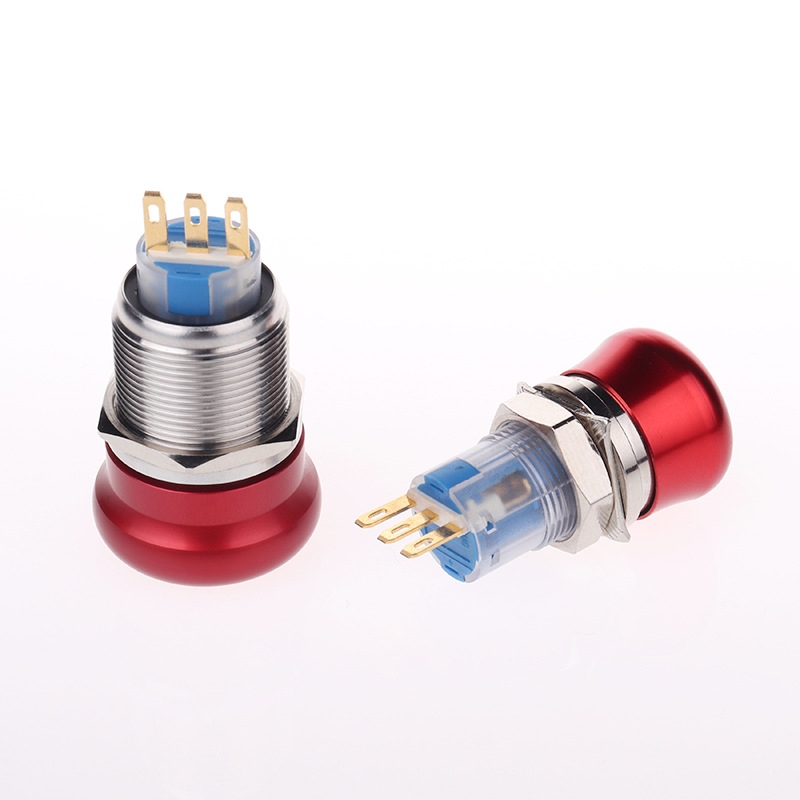

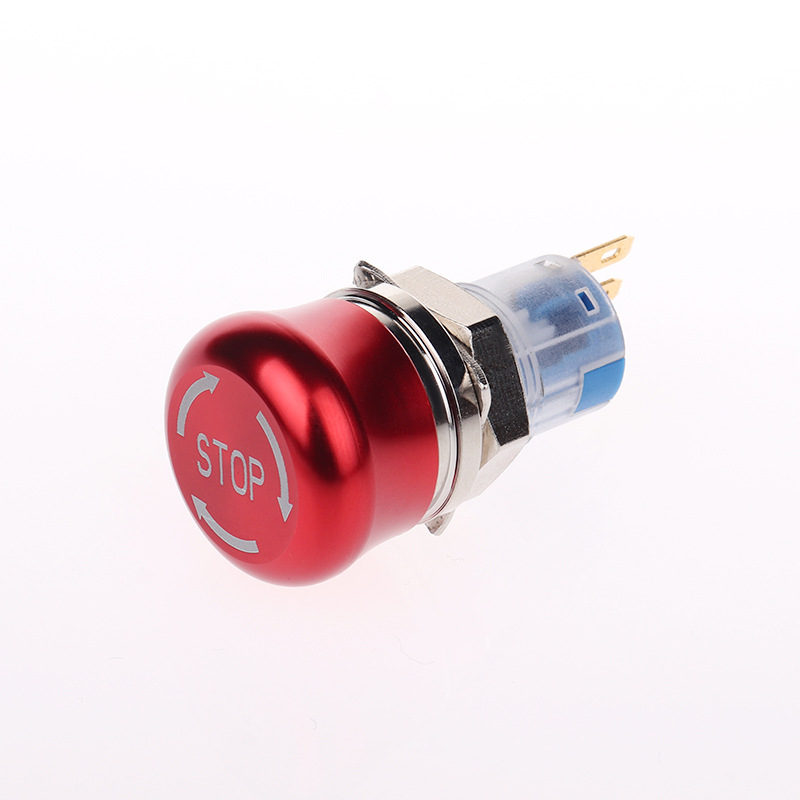

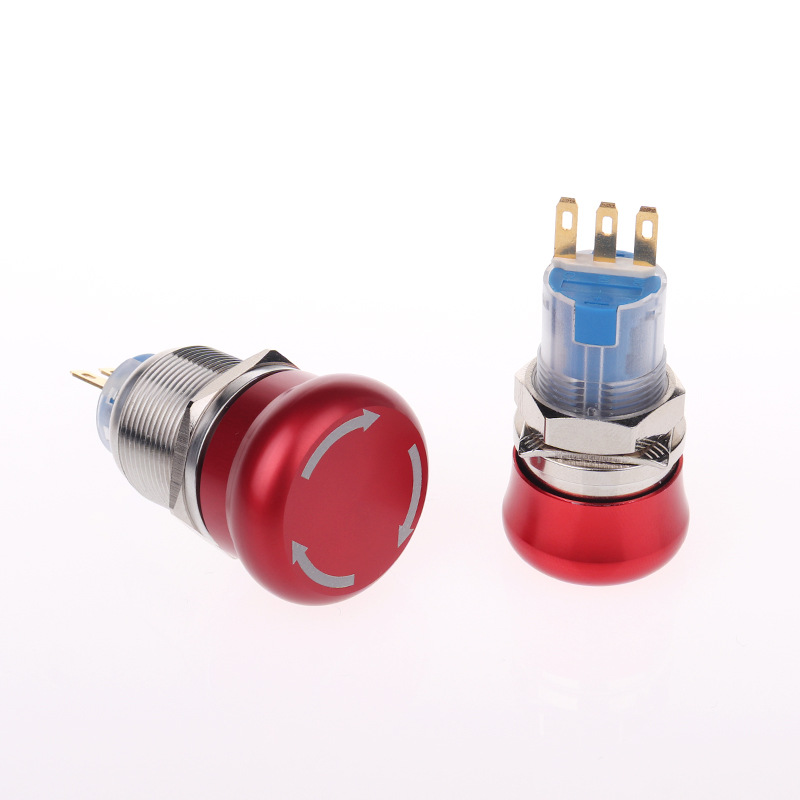

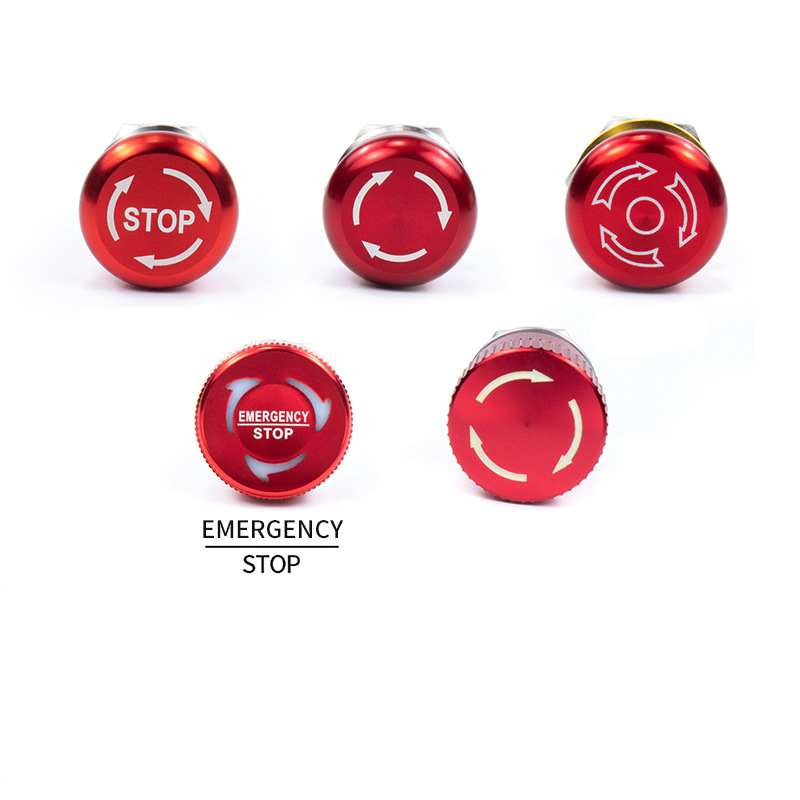

Product introduction : The mushroom head emergency stop button is an important safety device designed for use in industrial machinery and equipment. This emergency stop button features a unique mushroom-shaped button that is easy to identify and activate, providing a reliable method to quickly shut down equipment in an emergency. With its eye-catching red color and sturdy construction, it is an important component in ensuring workplace safety in industrial environments.
Application : Industrial machinery: Mushroom head emergency stop buttons are widely used in industrial machinery, such as conveying systems, manufacturing equipment and automated production lines. Its large, easy-to-operate mushroom-shaped button allows operators to quickly initiate an emergency shutdown, preventing accidents and minimizing potential hazards in industrial environments.
