Specification:
Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape:
High head Hole size: 19mm
| Product Name |
Push button switch |
| Model |
YL19C-C11GEZ |
| Mounting Hole |
19mm |
| Operation Type |
latching |
| Switch Combination |
1NO1NC |
| Head Type |
High head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

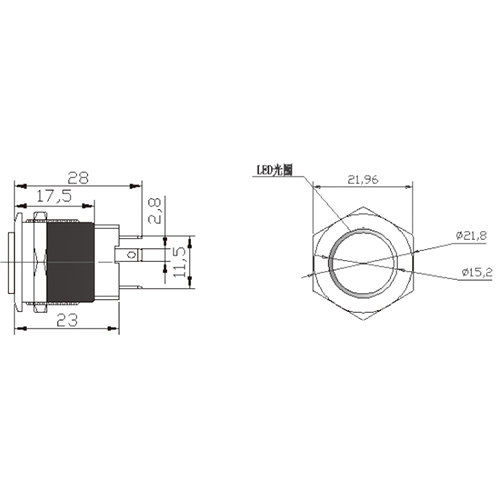

Drawing
Product introduction : Anti-vandal switches are designed to provide superior durability and security while providing responsive control and user interaction. Its rugged construction and tamper-resistant features make it ideal for applications requiring resilient performance and protection from unauthorized manipulation. The switch serves as a critical interface component to ensure operational reliability and user safety in a variety of industrial and commercial equipment.
Application : Security Systems: Anti-vandal switches are used in security systems including access control panels, alarm systems and monitoring equipment. Its anti-vandal design and security drivers help maintain the integrity of the security infrastructure, enabling reliable control and user interaction while protecting critical security applications from unauthorized interference.
