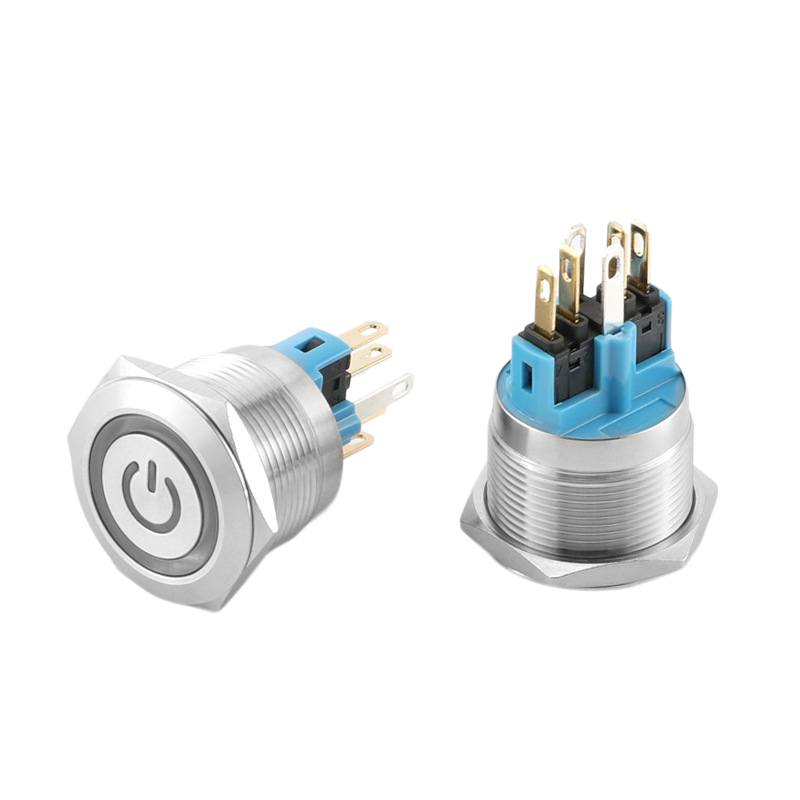

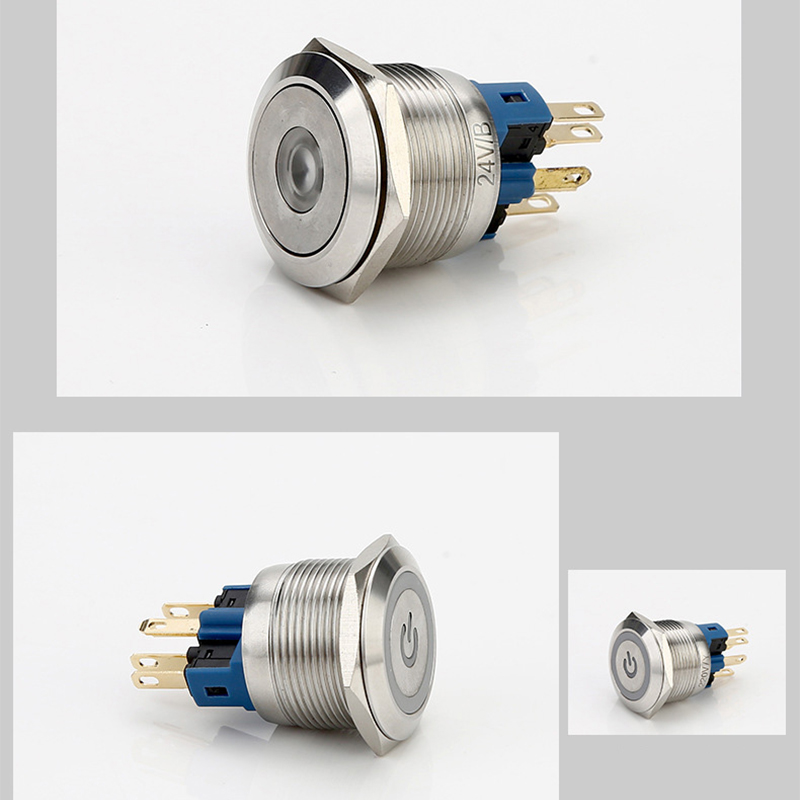

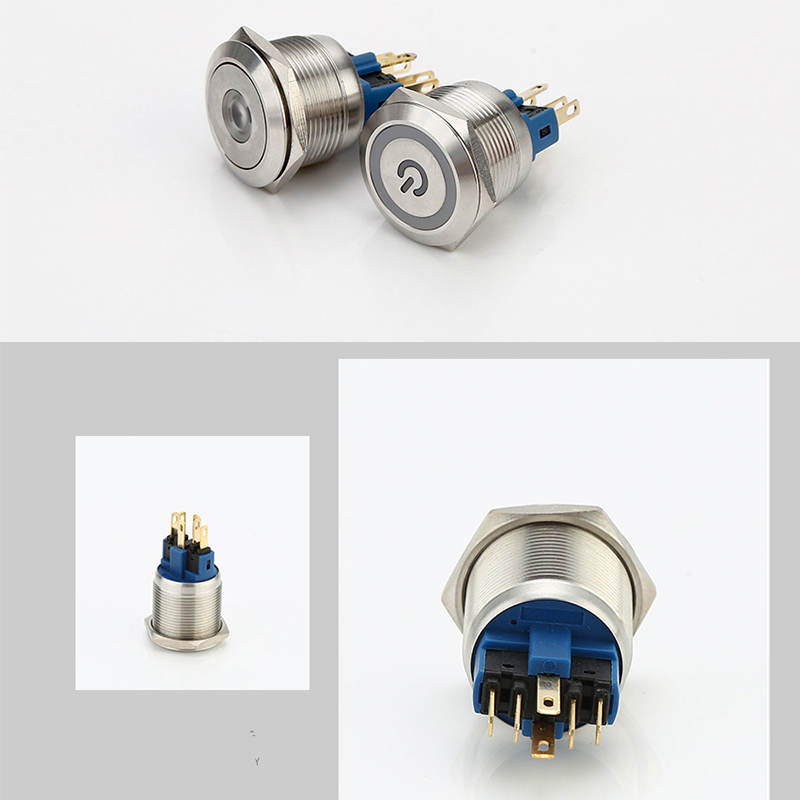

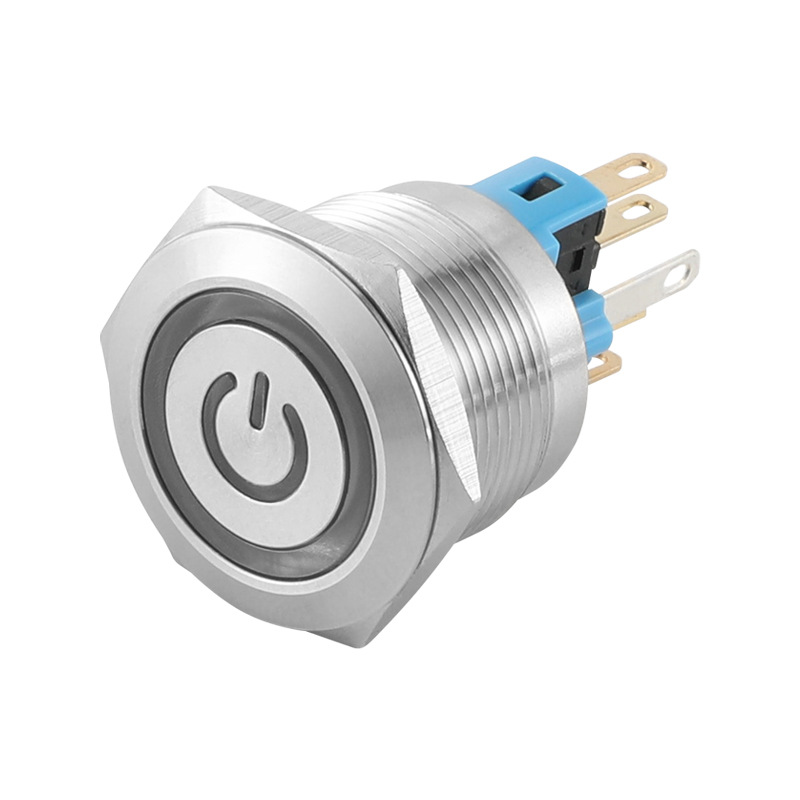

stainless steel latching push button switch

Specification:  Product name: Illumination Push Button Switch/ Anti-vandal switch Material: Brass nickel plated / Stainless steel LED color: Blue White Yellow Red Green Orange Operation Type: Latching  type push it-on, push again  it-off Switch Rating: 5A/250VAC LED voltage: 12V or 3V, 5V, 24V, 110V, 220V Contact Configuration: 1NO1NC Head shape:  High  head  Hole size: 22mm
Product Name Push button switch
Model YL22C-B11PCZ
Mounting Hole 22mm
Operation Type latching
Switch Combination 1NO1NC
Head Type High  head
Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

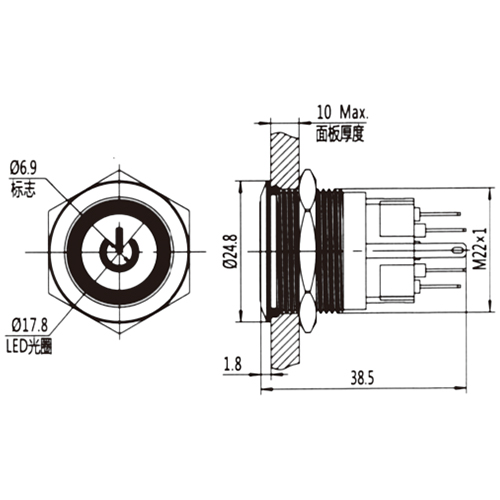

  Drawing Product introduction : This heavy-duty metal push button switch is designed to withstand high current applications, making it suitable for power distribution and industrial power control systems. Application : Power Distribution: These switches are commonly used in power generation facilities, substations, and industrial power plants for high current switching and circuit protection
