Specification:

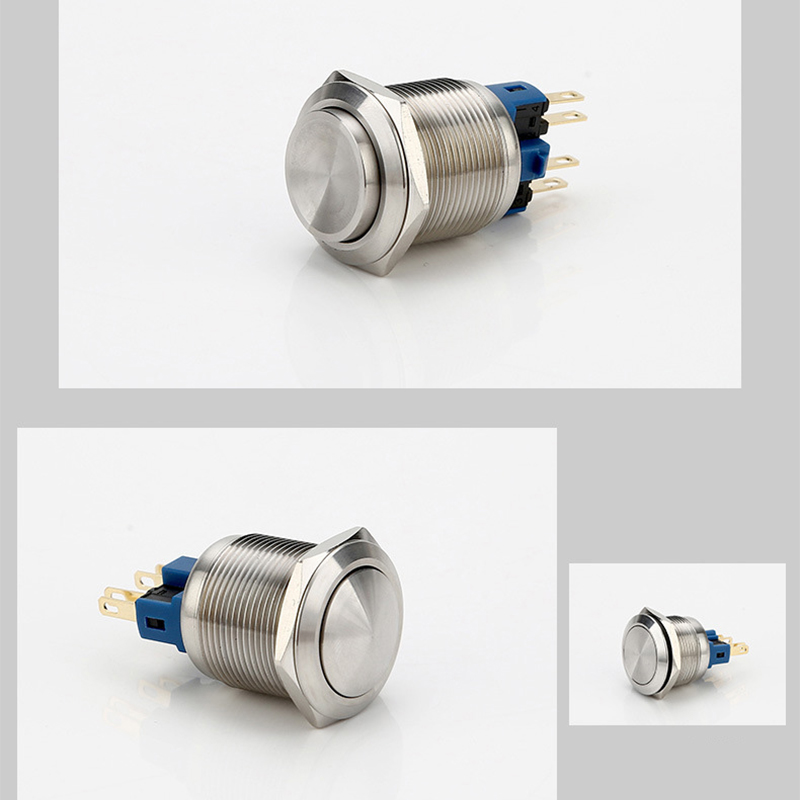

Product name: stainless steel momentary push button switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type:Latching type Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO

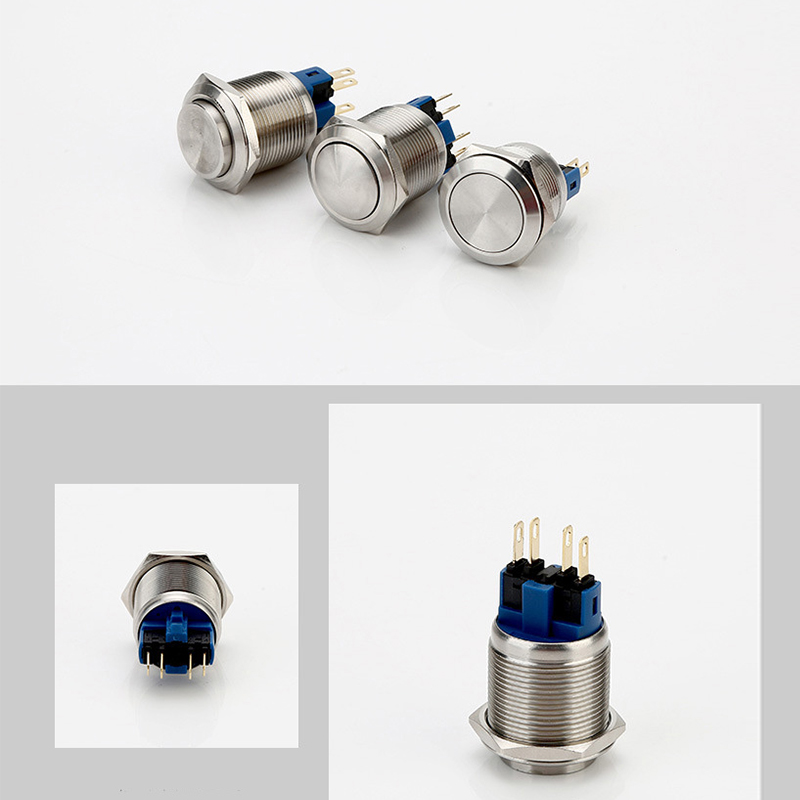

Head shape:
High head Hole size: 22mm
| Product Name |
Push button switch |
| Model |
YL22C-B11QZ |
| Mounting Hole |
22mm |
| Operation Type |
Latching |
| Switch Combination |
1NO |
| Head Type |
DOME |

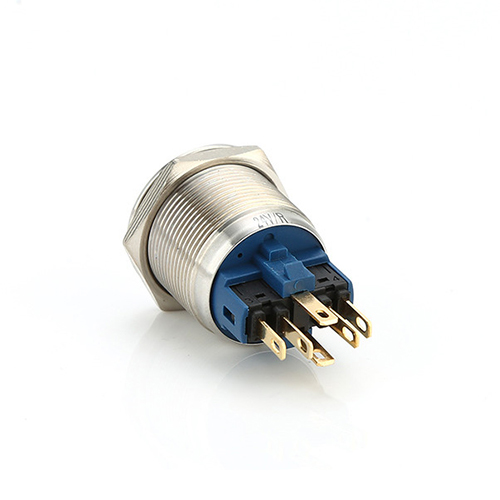

| Terminal type |
PINS |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

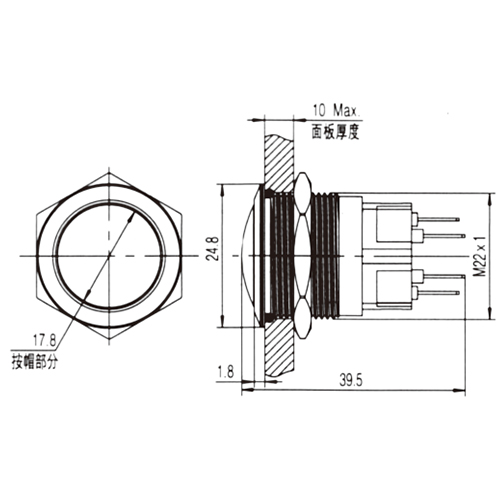

Drawing
Product features : Metal push button switches come with a variety of mounting options and can be easily integrated into a variety of control panels and enclosures. Its adaptability and compatibility to different installation requirements make it a flexible and convenient choice for different applications across industries.
Application : Automation systems: Metal push-button switches are integrated into automation systems and control cabinets, providing a reliable interface for starting and managing automated processes in manufacturing, packaging and logistics operations. Its flexible installation capabilities enable seamless integration into automated equipment and machinery.
