stainless steel push button switch

Features:  Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.   Specification:  Product name: Push Button Switch/ Anti-vandal switch Material: Brass nickel plated / Stainless steel LED color: Blue White Yellow Red Green Orange Operation Type: Latching Rating: 5A/250VAC LED voltage: 12V or 3V, 5V, 24V, 110V, 220V Contact Configuration: 1NO1NC Head shape: Flat head  Hole size: 12mm
Product Name Push button switch
Model YL12C-C11PEZ
Mounting Hole 12mm
Operation Type Latching
Switch Combination 1NO1NC
Head Type Flat head
Terminal type PINS  Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

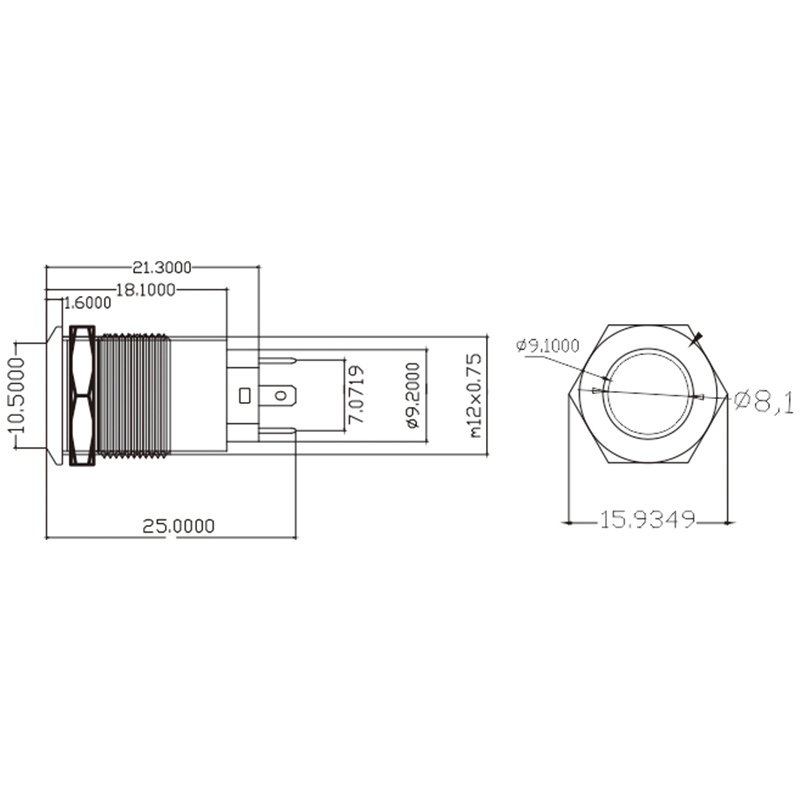

  Drawing Product introduction : Vandal-resistant metal push button switches are engineered to withstand intentional tampering and harsh conditions. It is ideal for public access control and security systems. Application : Access Control: These switches are widely used in automatic doors, security doors and entrance systems in public facilities and commercial buildings to ensure safe and reliable operation.
