Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name19mm momentary push button switch
Material: Brass nickel plated / Stainless steel
LED color: yes
Operation Type:Latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 22mm
| Product Name |
Push button switch |
| Model |
YL22S-F11Y |
| Mounting Hole |
22mm |
| Operation Type |
Latching |
| Switch Combination |
1NO |
| Head Type |
Flat head |
| Terminal type |
Pins Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

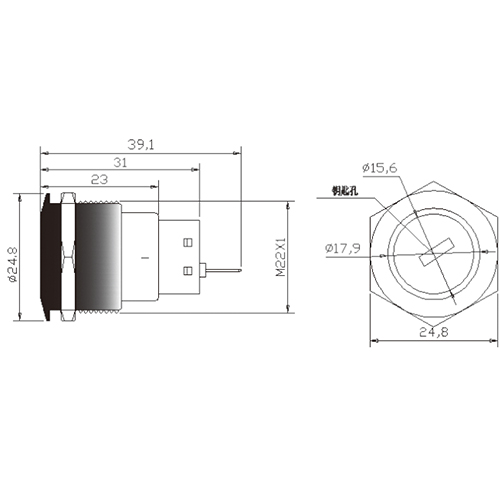

Drawing

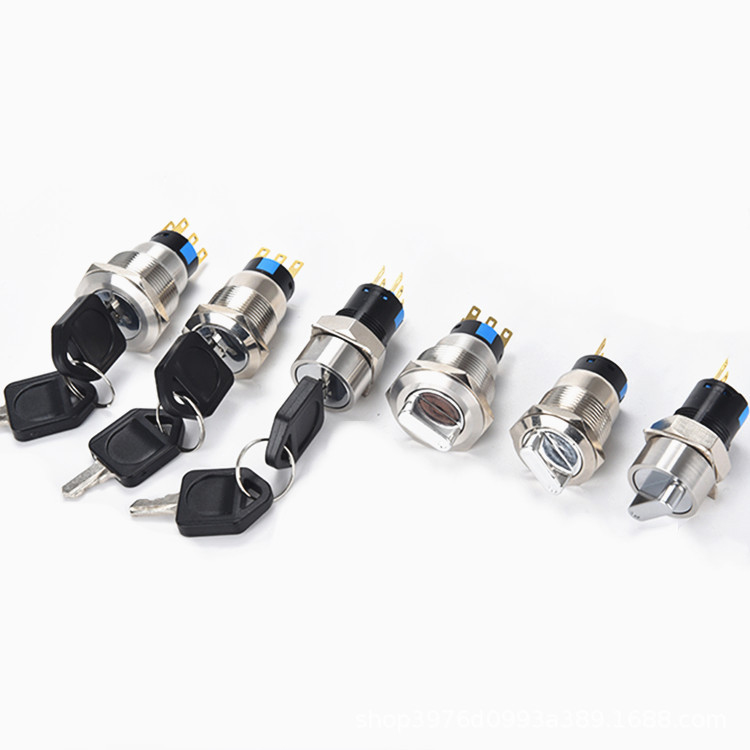

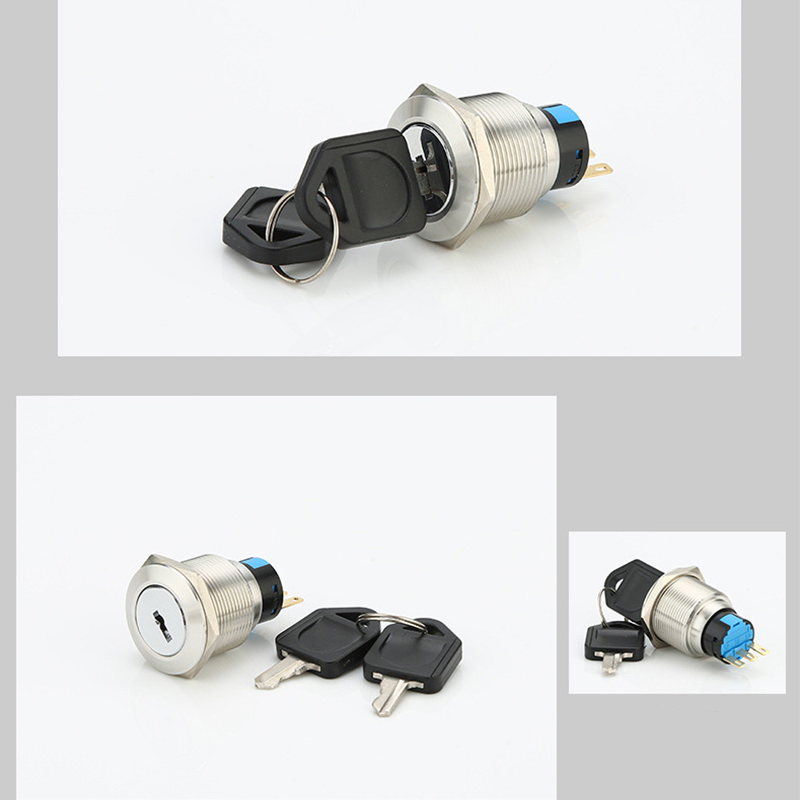

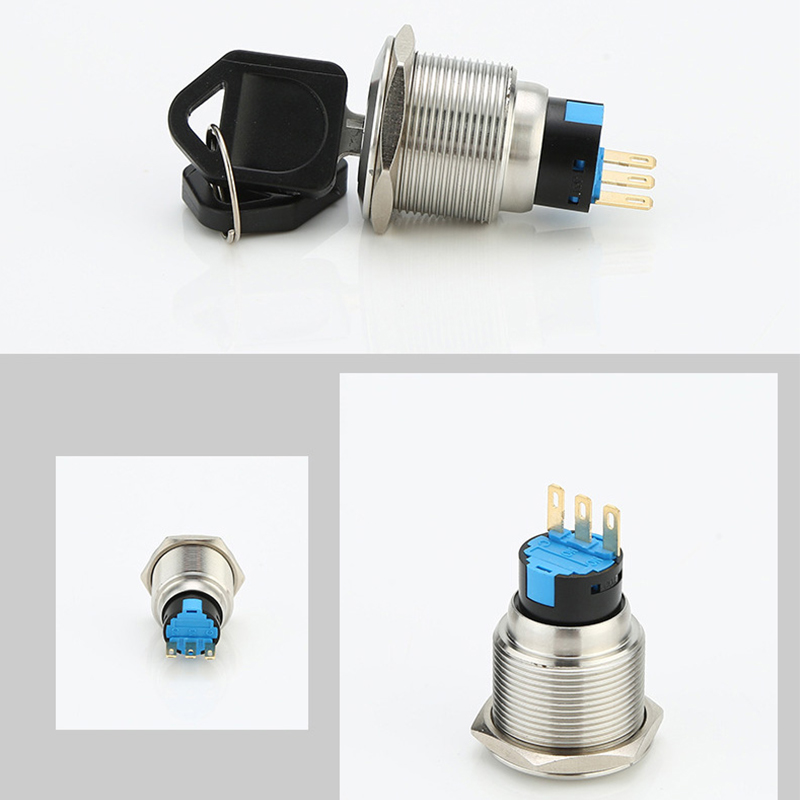

Product introduction : The Keyed Tamper Resistant Switch is an advanced switch designed for applications requiring security and durability. The switch features rugged stainless steel construction and a unique key-operated mechanism to provide reliable performance in challenging environments. Its tamper-resistant design makes it suitable for security systems, access control panels and outdoor equipment.
Application: Security Systems: Keyed tamper-resistant switches are commonly used in security systems, access control panels, and alarm systems to provide a secure and tamper-resistant interface. Its key-operated mechanism ensures authorized access and prevents unauthorized tampering, making it an ideal solution for protecting sensitive areas and equipment.
