Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name
mushroom head emergency stop button
Material: Brass nickel plated / Stainless steel
LED color: yes
Operation Type:Latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 22mm
| Product Name |
Push button switch |
| Model |
YL22C-D11M |
| Mounting Hole |
22mm |
| Operation Type |
Latching |
| Switch Combination |
1NO1NC |
| Head Type |
Flat head |
| Terminal type |
Pins Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

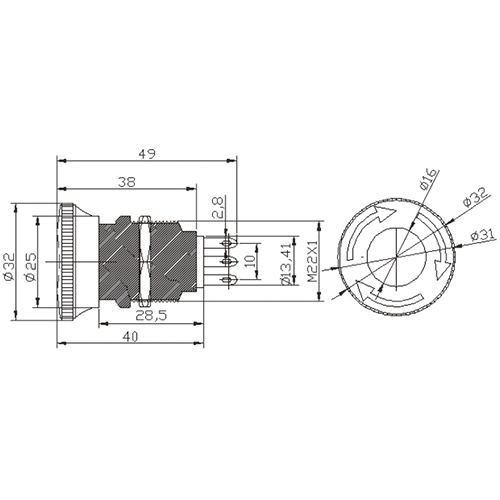

Drawing

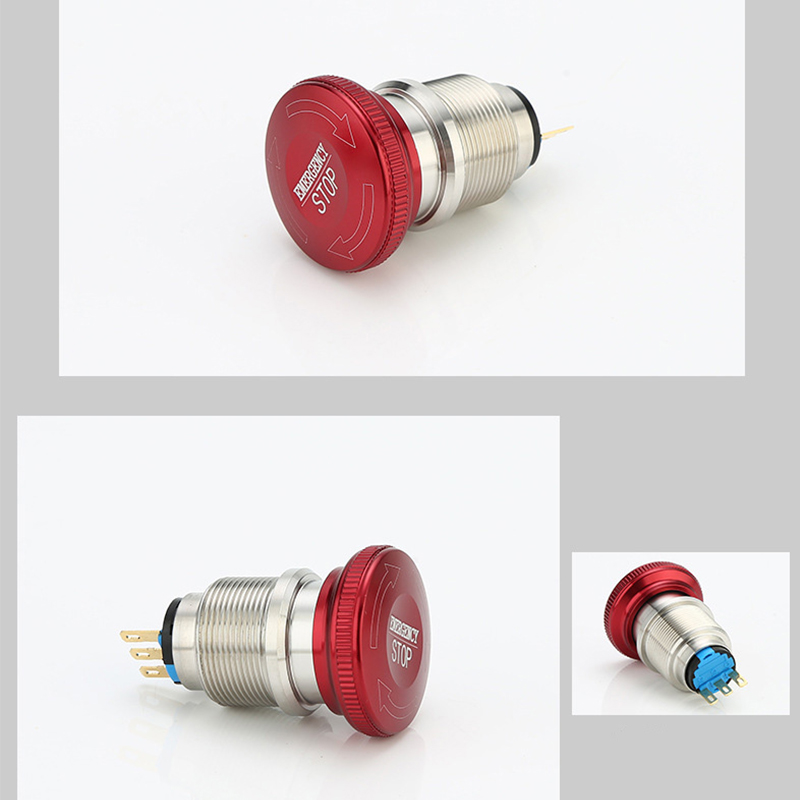

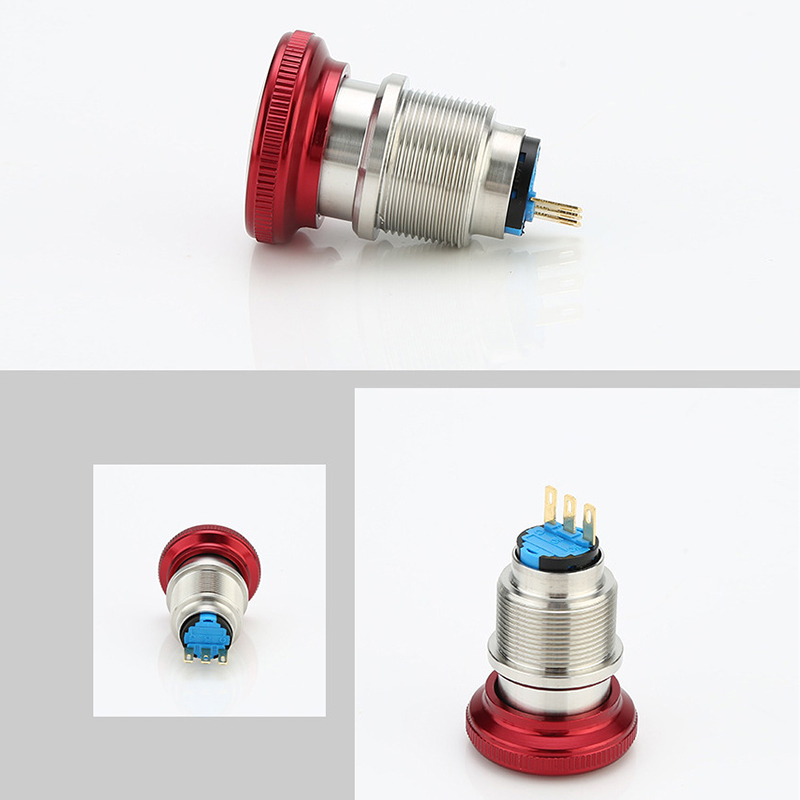

Product introduction : The mushroom head emergency stop button is an indispensable component in the safety systems of various types of equipment and machinery. Its prominent mushroom-shaped actuator and durable construction make it ideal for heavy machinery, material handling systems and industrial control interface applications. This emergency stop button plays a vital role in ensuring workplace safety and preventing accidents in industrial and commercial settings.
Application : Material Handling Systems: Mushroom-head emergency stop buttons are critical in material handling systems, including conveyors, cranes, and automated storage and retrieval systems. Its unique mushroom-shaped button enables operators to instantly stop equipment in an emergency, reducing the risk of injury or damage and promoting a safe working environment.
