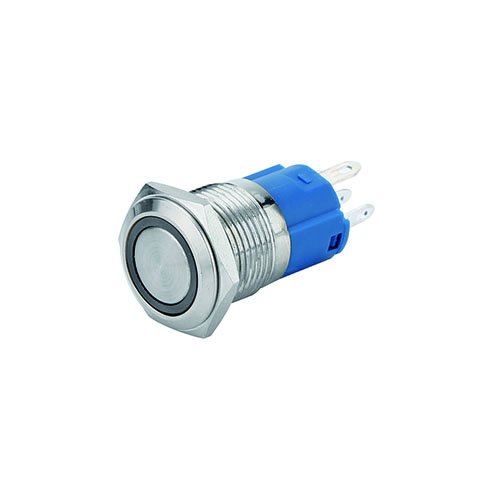

Specification
| Product Name |
Push button switch |
| Model |
YL16C-B11PEZ |
| Mounting Hole |
16mm |
| Operation Type |
latching |
| Switch Combination |
1NO1NC |
| Head Type |
High head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |
Drawing
product description
Our Anti-Vandal Switch is the epitome of strength and style. Engineered to deter tampering and ensure operational excellence, this switch is the ideal choice for demanding applications.
Constructed from premium materials, the Anti-Vandal Switch boasts a vandal-proof design and exceptional durability. Its momentary action guarantees reliable operation, and the optional LED illumination enhances its visual appeal.
When security and aesthetics matter, our Anti-Vandal Switch delivers on all fronts. Elevate your equipment's protection with this rugged and sophisticated switch.
Protect your equipment with our Anti-Vandal Switch – a symbol of resilience and precision. Crafted for applications where security is paramount, this switch combines robustness with reliability.
Featuring a sturdy stainless steel housing, the Anti-Vandal Switch can withstand attempts at tampering and harsh environmental conditions. Its momentary action ensures precise control, and the optional LED illumination adds functionality and visual appeal.
Count on our Anti-Vandal Switch to safeguard your equipment and deliver top-notch performance.
Anti-Vandal Switch Product Application
Vending Machines
Vending machines are often placed in public areas, making them vulnerable to vandalism. Our Anti-Vandal Switches are a smart choice for these machines, helping to protect against unauthorized tampering while providing a reliable means for users to make their selections.
