Specification:

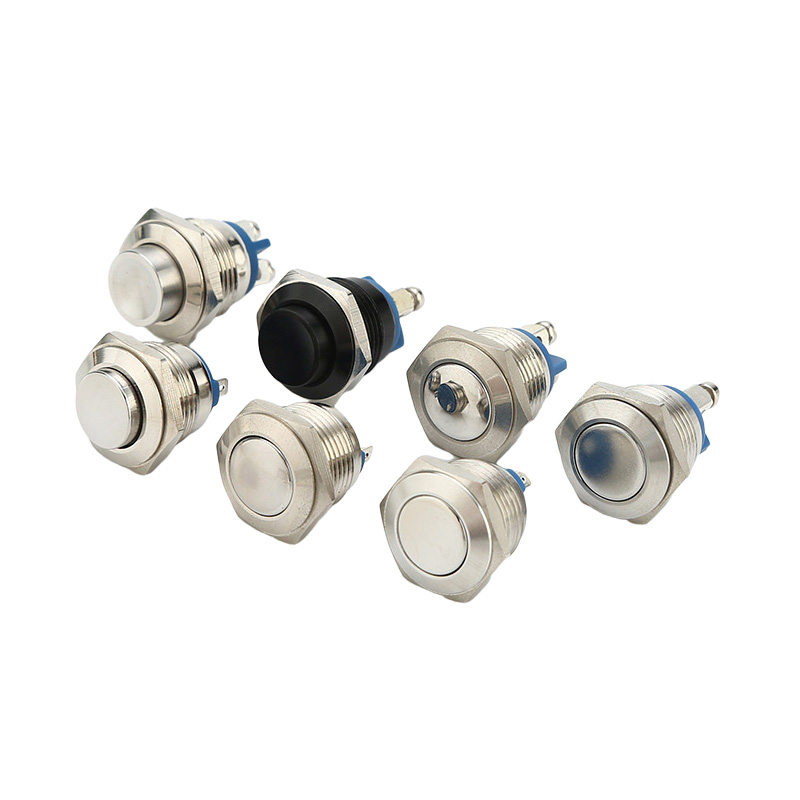

Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: no
Operation Type: Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape:
High head Hole size: 16mm
| Product Name |
Push button switch |
| Model |
YL16C-A10G |
| Mounting Hole |
16mm |
| Operation Type |
Momentary |
| Switch Combination |
1NO |
| Head Type |
High head |
| Terminal type |
Terminal |
| Enclosure Material |
Brass nickel |
| Delivery Days |
3-7 days after payment received |
| Contact Resistance |
50 mΩ max |
| Insulation Resistance |
1000MΩ Min |
| Dielectric Intensity |
2000VAC |
| Operating Temperature |
-20°C ~+55°C |
| Wire Connector / Wire soldering |
Acceptable and with fast shipping |
| Accessories |
Nut, Rubber ,Waterproof O-ring |

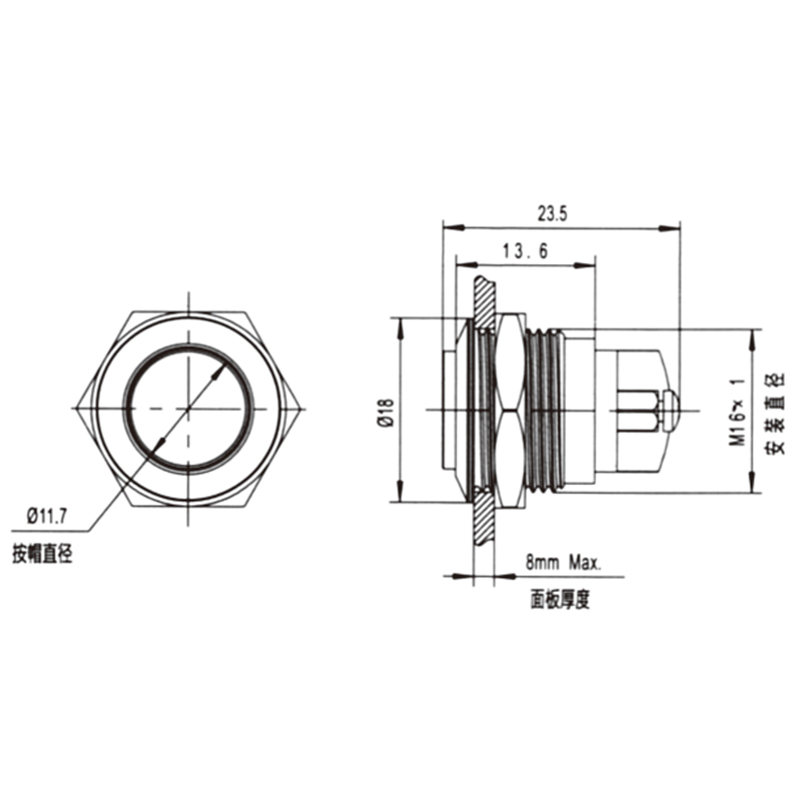

Drawing
Product introduction: Metal push button switches with IP-rated sealing are ideal for use in harsh industrial environments and outdoor enclosures, providing reliability in extreme conditions.
Application : Harsh Environments: These switches are commonly used in manufacturing plants, chemical processing facilities, and outdoor control systems where resistance to moisture, chemicals, and physical shock is critical to reliable operation.
